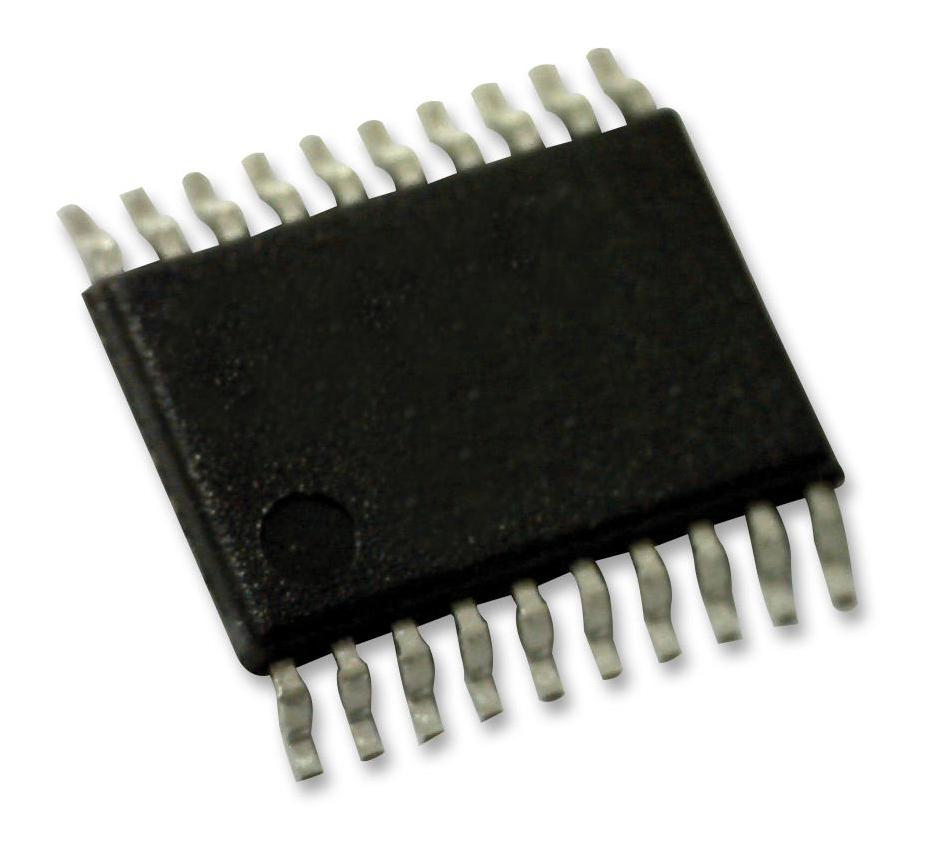

NXP LPC822M101JDH20J Microcontroller
The LPC822M101JDH20 is a low-cost, 32-bit ARM Cortex-M0+ microcontroller featuring up to 16 KB flash memory, 4 KB SRAM, a 12-bit ADC, and multiple communication interfaces. It supports flexible pin configurations via a switch matrix, programmable power profiles, and various low-power modes, making it suitable for consumer, industrial, and portable applications. The device includes rich peripherals such as UART, SPI, I2C, timers, ADC, comparator, and advanced clock management for efficient operation in embedded systems. Its integrated ROM APIs support in-system programming and security features for versatile deployment.
NXP LPC822M101JDH20J Microcontroller Specifications:
- Flash Memory: 16 KB
- SRAM: 4 KB
- ADC: 12-bit, 12 input channels, sample rate up to 1.2 MSamples/s
- Communication Interfaces: 3 USARTs, 2 SPIs, 4 I2C-bus interfaces
- Clock: Internal RC oscillator, crystal oscillator (1-25 MHz), PLL for CPU up to 30 MHz
- Power Supply: 1.8 V to 3.6 V
- Power Modes: Sleep, Deep Sleep, Power-down, Deep Power-down
- Package: TSSOP20
- Operating Temperature Range: -40°C to +105°C
- Additional peripherals: 8-channel DMA, 12-bit Analog Comparator, PWM timers, Watchdog Timer
- Security: Code Read Protection, in-system programming support, ROM APIs
Buy the NXP Series LPC82x 16 KB Flash Microcontroller: LPC822M101JDH20
Discover the reliable performance of the LPC822M101JDH20 microcontroller. Featuring 16 KB flash, 4 KB SRAM, 12-bit ADC, and multiple communication interfaces, it is ideal for industrial, consumer, and portable applications. With flexible pin configurations, low-power modes, and robust security features like code read protection, this device supports rapid development. Purchase online today and enhance your embedded system designs with NXP's trusted technology and versatile peripherals for efficient, reliable operation in demanding environments.
Order your NXP Series LPC822M101JDH20 microcontroller today and give your projects the dependable quality they deserve with advanced features and flexible configurations.
Frequently Asked Questions
Where can I buy NXP LPC822M101JDH20J?
You can click on the BUY or RFQ button to purchase LPC822M101JDH20J from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part LPC822M101JDH20J?
You can download the LPC822M101JDH20J datasheet or visit the NXP website for support.
Who is the manufacturer of LPC822M101JDH20J?
NXP
