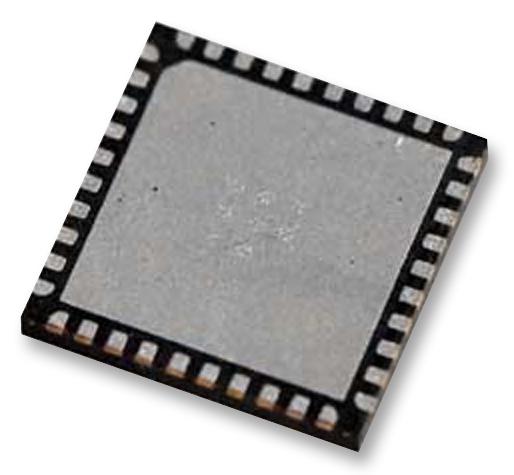

NXP MC34PF1550A1EP Power Management IC
The MC34PF1550A1EP is a low power PMIC designed for application processors, integrating buck regulators and linear regulators, along with a battery charger, voltage references, and versatile control features. It offers high efficiency, programmable voltages, dynamic voltage scaling, thermal regulation, and various power modes suitable for mobile and IoT devices. Its comprehensive features support power management for embedded systems, supporting diverse application requirements with configurable settings, fault protections, and power sequencing for reliable operation in low power environments.
NXP MC34PF1550A1EP Power Management IC Specifications:
- Input Voltage Range: 1.7 V to 3.6 V (VDDIO), up to 48 V (buck inputs)
- Buck Regulators: 3 modules, programmable output from 0.60 V to 3.30 V, up to 1.0 A each, switching frequency up to 2.0 MHz
- Linear Regulators: 3 units, output voltages programmable from 0.75 V to 3.30 V, load currents up to 300 mA (LDO1 & LDO3), 400 mA (LDO2)
- Battery Charger: Supports single-cell Li-ion, configurable charge current (100-1500 mA), voltage (3.5-4.44 V), precharge and end-of-charge timers, thermistor monitor
- Voltage References: VREFDDR (0.5×Vin), VSNVS (3.0 V), regulated output and self-discharge capabilities
- Fault and Safety Features: Thermal regulation, overvoltage, undervoltage detection, current limit, thermal foldback, overcurrent protection, battery overvoltage fault
- Protection & Control: Fault handling, sequence control via OTP, debounce timing, programmable thresholds, system-off modes, reset controls
- Operating Temperature: -40°C to 105°C, with packages designed for high thermal dissipation and compliance with JEDEC standards
Buy the NXP MC34PF1550A1EP – Reliable Power Management for Low Power Embedded Devices
Get the NXP MC34PF1550A1EP today online and enhance your system's power efficiency and reliability. Designed for embedded applications, it provides configurable buck and linear regulators, battery charger, voltage references, and fault protection all integrated into one compact package. Perfect for mobile, IoT, and low power devices, this PMIC ensures safe and efficient power management with dynamic voltage scaling, thermal regulation, and programmable timers. Trust NXP for your next low power system solution.
Order your NXP MC34PF1550A1EP today and optimize your low power applications with a versatile PMIC featuring high efficiency buck regulators and extensive protection features.
Frequently Asked Questions
Where can I buy NXP MC34PF1550A1EP?
You can click on the BUY or RFQ button to purchase MC34PF1550A1EP from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MC34PF1550A1EP?
You can download the MC34PF1550A1EP datasheet or visit the NXP website for support.
Who is the manufacturer of MC34PF1550A1EP?
NXP
