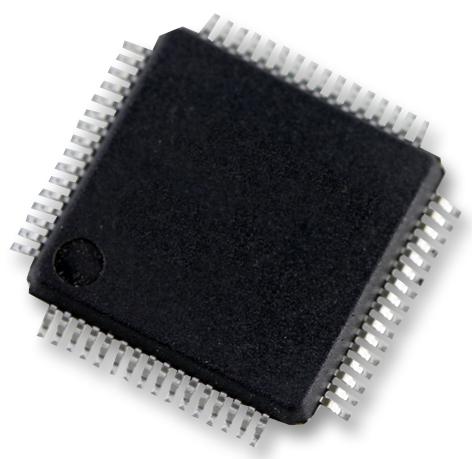

NXP MC9S08PL60CQH Microcontroller Module
The MC9S08PL60 microcontroller features an 8-bit S08 core operating up to 20 MHz, with 60 KB flash memory, 4 KB RAM, and 256 bytes EEPROM. It supports multiple peripherals including ADC with 16 channels and 10-bit resolution, FlexTimer modules, and serial communication interfaces. Its power-efficient design includes low-voltage detection, various power modes, and robust system protection features, making it ideal for industrial and embedded applications requiring reliable performance and flexible I/O options in a compact package.
NXP MC9S08PL60CQH Microcontroller Module Specifications:
- Core: 8-bit S08 CPU, up to 20 MHz
- Memory: 60 KB flash, 4 KB RAM, 256 bytes EEPROM
- ADC: 16 channels, 10-bit resolution, 2.5 μs conversion time
- Timers: Three FlexTimer modules, 16-bit counters
- Serial Interfaces: 3 SCI modules, LIN support
- Power: Low-voltage detection, stop modes, reduced power wait mode
- Operating Voltage: 2.7 V to 5.5 V
- Temperature Range: -40°C to 85°C
- I/O: Up to 57 GPIO pins including open-drain outputs
- Package: 64-pin QFP, dimensions available externally
Buy the NXP Series MC9S08MCU: 8-bit Power-Efficient Microcontroller: MC9S08PL60
Experience the high-performance and power-efficient design of the NXP Microcontroller Module. With 60 KB flash, 4 KB RAM, 16-channel ADC, and flexible timer modules, it’s ideal for industrial and embedded systems. Its robust protection features, multiple power modes, and wide temperature range ensure reliable operation across diverse environments. Easily integrate this versatile device into your projects for optimal control, communication, and system efficiency. Purchase online now to leverage cutting-edge microcontroller technology for your applications.
Buy NXP MC9S08PL60 now and experience unmatched reliability and performance with its advanced features suited for industrial and embedded applications.
Frequently Asked Questions
Where can I buy NXP MC9S08PL60CQH?
You can click on the BUY or RFQ button to purchase MC9S08PL60CQH from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MC9S08PL60CQH?
You can download the MC9S08PL60CQH datasheet or visit the NXP website for support.
Who is the manufacturer of MC9S08PL60CQH?
NXP
