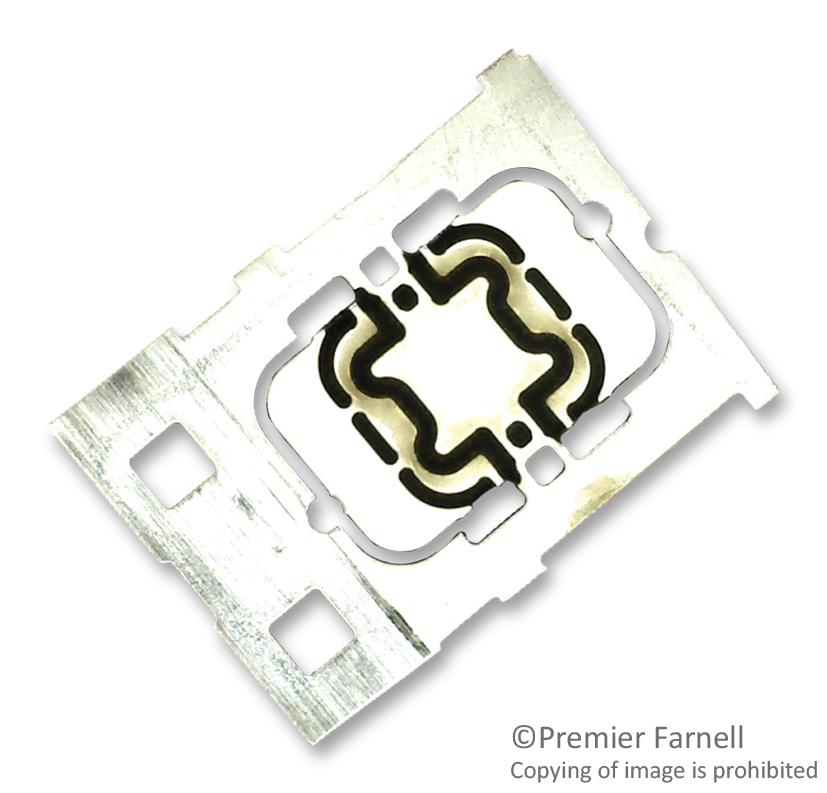

NXP MF1S5030XDA4V1J Contactless Smart Card IC
The MIFARE Classic EV1 1K is a widely used contactless smart card IC designed for secure and quick transactions in applications like public transportation, access control, and loyalty systems. It features 1 kB EEPROM organized in 16 sectors of 4 blocks, with a sector trailer for key management and access conditions. The chip supports ISO/IEC 14443 Type A communication, anticollision, mutual authentication, and data integrity mechanisms like CRC and parity bits. Its compact form factor and reliable encryption make it ideal for high-volume, secure applications.
NXP MF1S5030XDA4V1J Contactless Smart Card IC Specifications:
- Memory organization: 1 kB EEPROM, 16 sectors, 4 blocks per sector
- Block size: 16 bytes
- EEPROM data retention: 10 years
- Write endurance: 200000 cycles
- Operating frequency: 13.56 MHz
- Data transfer rate: 106 kbit/s
- Operating distance: up to 100 mm depending on antenna design
- Antenna interface: coil connection for contactless operation
- Communication interface: ISO/IEC 14443 Type A
- Anti-collision: supports multiple cards in field, sequence controlled
- Security: 2 secret keys (A&B) per sector, access conditions stored in sector trailer
- Power supply: via electromagnetic field from reader
- Physical form: Modular with pin configurations for contactless modules
- Temperature range: -55°C to +125°C (storage), -25°C to +70°C (ambient)
Buy the NXP Series Mainstream Contactless Smart Card: MF1S5030XDA4V1
Upgrade your contactless transaction systems with the NXP Series MF1S5030XDA4V1 smart card IC. Perfect for public transportation, access management, and loyalty programs, this secure device features 1kB EEPROM, ISO/IEC 14443 Type A compliance, and reliable encryption. Easy to integrate with modular pin configurations and support for multiple cards in the field, ensuring high throughput and data security. Buy online now to secure seamless, fast, and safe contactless applications with trusted NXP quality.
Order your NXP Series MF1S5030XDA4V1 contactless smart card today and enhance your secure transaction systems with reliable, high-performance ICs.
Frequently Asked Questions
Where can I buy NXP MF1S5030XDA4V1J?
You can click on the BUY or RFQ button to purchase MF1S5030XDA4V1J from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MF1S5030XDA4V1J?
You can download the MF1S5030XDA4V1J datasheet or visit the NXP website for support.
Who is the manufacturer of MF1S5030XDA4V1J?
NXP
