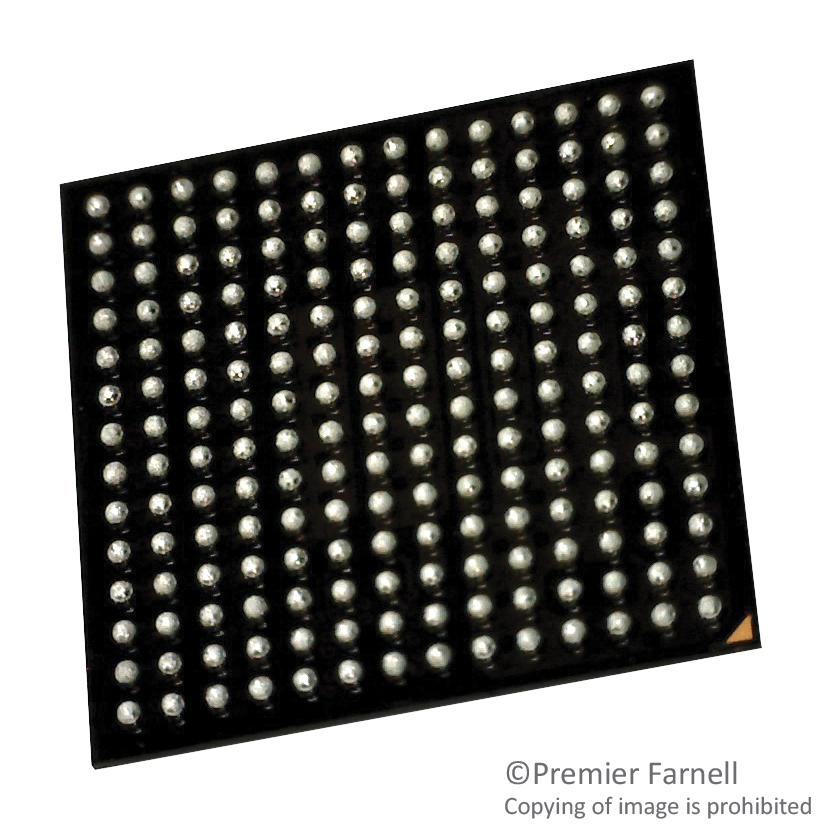

NXP MIMXRT1051CVL5B High-Performance Microcontroller
The i.MX RT1050 is a high-performance microcontroller featuring NXP's advanced implementation of the Arm Cortex-M7 core, operating at speeds up to 528 MHz. It offers 512 KB of on-chip RAM, configurable as TCM or general-purpose memory. The processor includes an integrated power management module with DCDC and LDO, reducing external power supply complexity. It supports various memory interfaces such as SDRAM, raw NAND flash, NOR flash, SD/eMMC, and Quad SPI, along with numerous peripherals including WLAN, Bluetooth, GPS, display, and camera interfaces. Additional features include up to 16 protection regions MPU, multiple 16-bit PWM channels, LCD interface, S/PDIF audio, and camera serial support, making it ideal for industrial automation and motor control applications.
NXP MIMXRT1051CVL5B High-Performance Microcontroller Specifications:
- Core: Arm Cortex-M7 MPCore operating up to 528 MHz
- On-chip RAM: 512 KB, configurable as TCM or general-purpose RAM
- Memory interfaces: SDRAM, Raw NAND with ECC, NOR, SD/eMMC, Quad SPI
- Protection: MPU with up to 16 regions
- Power modules: onboard DCDC and LDO for simplified external power supply
- Interfaces: WLAN, Bluetooth, GPS, camera, display, UART, I2C, SPI, CAN, USB, Ethernet
- Audio/Video: S/PDIF, multiple SAI, camera, and display interfaces
- Timers and PWM: Four 16-bit PWM channels, advanced motor drive support
- Display: 24-bit parallel RGB LCD interface
- Temperature range: -40°C to +105°C
- Package: 10 x 10 mm MAPBGA, 196-pin, 0.65 mm pitch
Buy the NXP Series RT1050 Microcontroller: MIMXRT1051CVL5B
Experience the exceptional capabilities of the NXP microcontroller featuring Cortex-M7 core at 528 MHz, 512 KB RAM, comprehensive memory and peripheral interfaces, ideal for industrial automation, motor control, and consumer electronics. Its integrated power management with DCDC and LDO simplifies external power supply requirements. With versatile interfaces including Ethernet, USB, camera, display, and audio, plus multiple PWM channels and protection regions, this microcontroller ensures reliable, efficient operation in demanding environments. Purchase the MIMXRT1051CVL5B online now for your next advanced project.
Order your NXP Series RT1050 microcontroller, MIMXRT1051CVL5B today and give your projects the dependable power and extensive interface support they deserve.
Frequently Asked Questions
Where can I buy NXP MIMXRT1051CVL5B?
You can click on the BUY or RFQ button to purchase MIMXRT1051CVL5B from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MIMXRT1051CVL5B?
You can download the MIMXRT1051CVL5B datasheet or visit the NXP website for support.
Who is the manufacturer of MIMXRT1051CVL5B?
NXP
