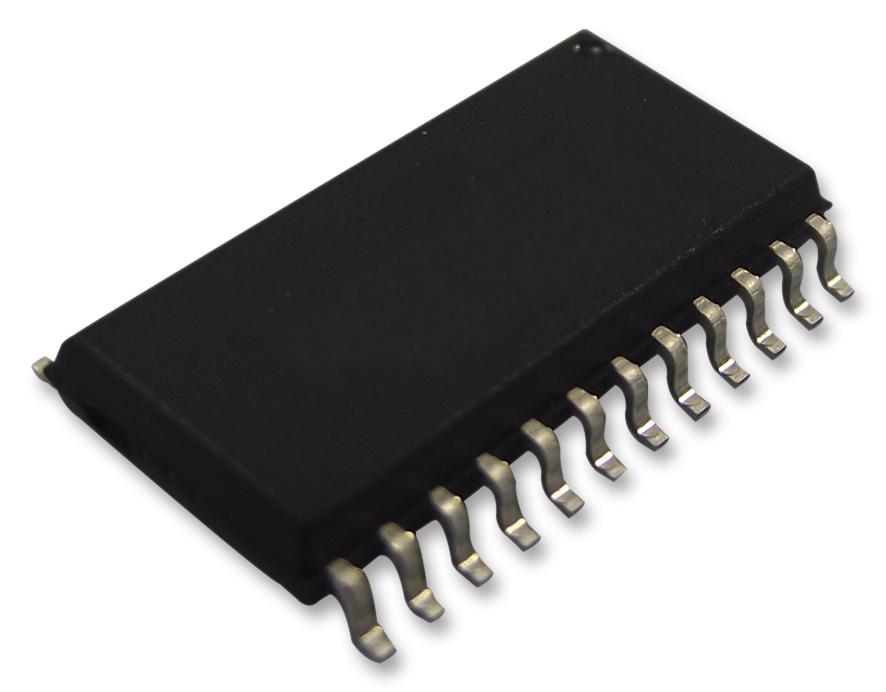

NXP PCAL9539APW118 GPIO Expander
The PCAL9539A is a low-voltage 16-bit GPIO expander with interrupt and reset capabilities for I2C-bus and SMBus applications. It offers flexible GPIO configuration, programmable drive strength, latchable inputs, and internal pull-up/pull-down resistors, making it ideal for sensor interfacing, push buttons, LEDs, and fan control. Recognized for its low power consumption, it supports 400 kHz fast-mode I2C, Power-On Reset, and multiple address options for up to four devices on the bus. Its high drive capability and noise immunity simplify system design for automation and industrial controls.
NXP PCAL9539APW118 GPIO Expander Specifications:
- Supply Voltage: 1.65 V to 5.5 V
- Operating Current: Typical 60–125 μA at Vpp=3.3 V, Tamb=25°C
- Input Voltage: up to Vpp + 0.3 V
- Output Drive: Programmable, four levels, up to 25 mA sink capability
- GPIO Pins: 16 bidirectional with configurable direction and polarity
- Power-on Reset: Internal, default state as inputs, no glitch on power-up
- Interrupt: Open-drain output, maskable, active LOW, with internal debounce
- Interface Speed: up to 400 kHz I2C-fast mode
- Package Options: TSSOP24, HVQFN24 with thermal pad
- ESD Protection: Exceeds 2000 V Human Body Model
- Pull-up/Pull-down Resistors: Internally integrated, configurable via registers
- Pin Configuration: Dedicated interrupt, reset, and address pins, open-drain interrupt
- Temperature Range: -40°C to +85°C
- Manufacturing: Lead-free, RoHS compliant
