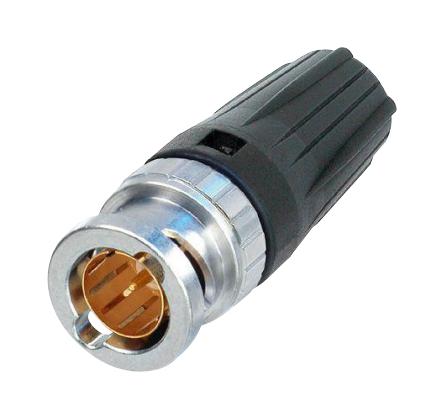

Neutrik NBNC75BUU11 HD BNC Connector
The rearTWIST HD BNC connector offers a true 75 ohm impedance, ideal for HD video applications like HDTV and DVDs. Featuring a patented rearTWIST boot, it provides easy access even in high-density settings and simplifies installation in recessed bulkheads. Crafted with Swiss machined brass for durability, it supports over 1000 mating cycles and includes color-coded boots for easy identification. The connector ensures excellent cable protection, secure crimping, and shield integrity, making it perfect for professional broadcasting, video, and surveillance systems with reliable performance up to 3 GHz.
Neutrik NBNC75BUU11 HD BNC Connector Specifications:
- Impedance: 75Ω
- Contact Resistance: <= 3 mΩ (inner), <= 2 mΩ (outer)
- Dielectric Strength: 1.5 kV
- Insulation Resistance: >5 GΩ
- Rated Voltage: <50 V
- Cable O.D.: 7.3 mm
- Crimp Size (Pin): 1.6 mm square
- Crimp Size (Shield): 7.36 mm hex
- Locking Device: Bayonet
- Cable Retention: >30 N
- Temperature Range: -30°C to +85°C
- Shell Plating: Nickel
- Materials: Brass (CuZn35Pb2), PTFE insulator, Optalloy®
- Environmental Compliance: IEC 60803, IEC 60352-2
Buy the Cinch NBNC75BUU11 – Reliable BNC for HD Applications
Enhance your HD video and broadcasting setups with the high-quality BNC connector featuring rearTWIST technology for easy installation. Crafted from durable Swiss brass, this 75 ohm connector supports over 1000 mating cycles, ensures excellent shielding and cable retention, and is suitable for high-density environments. Its precise crimping design and color-coded boots facilitate quick, secure connections. Perfect for professional video, CCTV, and broadcast systems, this connector maintains performance up to 3 GHz, delivering clear, stable signals for demanding industrial and media applications.
Buy Cinch NBNC75BUU11 now and experience unmatched reliability and performance in HD video connections.
Frequently Asked Questions
Where can I buy Neutrik NBNC75BUU11?
You can click on the BUY or RFQ button to purchase NBNC75BUU11 from an authorized Neutrik distributor.
How do I troubleshoot issues or seek technical support for part NBNC75BUU11?
You can download the NBNC75BUU11 datasheet or visit the Neutrik website for support.
Who is the manufacturer of NBNC75BUU11?
Neutrik
