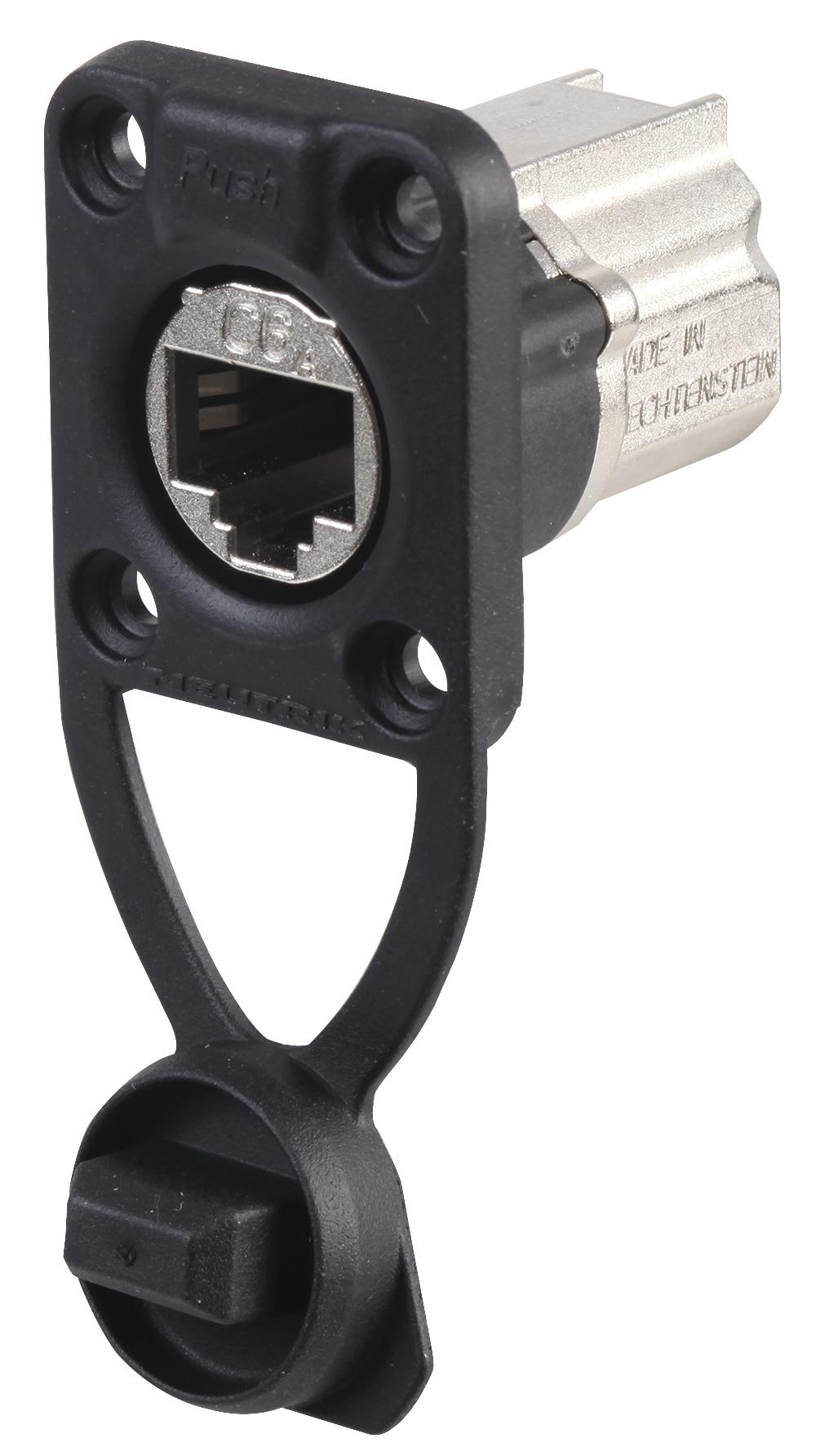

Neutrik NE8FDXP6W industrial connector
The Neutrik NE8FDX-P6-W is a ruggedized, shielded D-shape CAT6a panel connector designed for high durability and reliable data transmission. Featuring waterproof IP65 protection, rubber sealing, and a robust latch lock system, it ensures safe operation in harsh environments. Compatible with PoE+ IEEE 802.3at standards, this connector supports extensive mating cycles and EMI protection. Made from zinc diecast shell with gold-plated contacts, it is ideal for industrial, audio, and networking applications that demand high noise immunity and waterproof performance.
Neutrik NE8FDXP6W industrial connector Specifications:
- Gender: Female
- Dielectric Strength: 1kVde
- Insulation Resistance: >05GΩ
- Rated Current per Contact: 1.5A
- Transmission Performance: CAT6a according to TIA/EIA-568-C.2
- PoE+ Support: IEEE 802.3at Type 2
- Lifetime: >1000 mating cycles
- Material - Contact Plating: Gold
- Material - Gasket: Rubber (EPDM)
- Material - Shell: Zinc diecast (ZnAl4Cu)
- Flammability: UL94 V0
- Protection Class: IP 65 (with NE8MX6*)
- Temperature Range: -40°C to +70°C
Buy the Buy Neutrik NE8FDX-P6-W Part Number NE8FDXP6W Online
Secure your networking and industrial connectivity with the Neutrik NE8FDX-P6-W waterproof shielded CAT6a connector. Featuring a rugged zinc diecast shell, gold-plated contacts, and rubber sealing, it offers IP65 protection against dust and water. Designed to withstand over 1000 mating cycles, supports PoE+ IEEE 802.3at standards, and provides high noise immunity and EMI protection. Perfect for industrial environments requiring reliable, high-performance data transmission in harsh conditions. Purchase online now for dependable, professional-grade connectivity tailored to your needs.
Order your Neutrik Series NE8FDX-P6-W waterproof CAT6a connector today and ensure your networking projects benefit from superior waterproof and EMI protection.
Frequently Asked Questions
Where can I buy Neutrik NE8FDXP6W?
You can click on the BUY or RFQ button to purchase NE8FDXP6W from an authorized Neutrik distributor.
How do I troubleshoot issues or seek technical support for part NE8FDXP6W?
You can download the NE8FDXP6W datasheet or visit the Neutrik website for support.
Who is the manufacturer of NE8FDXP6W?
Neutrik
