NEXPERIA NX138BKMYL High-Speed MOSFET
The NX138BKM is a compact, 60V N-channel trench MOSFET designed for high-speed switching and low on-resistance in a leadless DFN1006-3 package. Suitable for relay drivers, high-speed line drivers, low-side loadswitches, and switching circuits, it features excellent electrostatic discharge protection over 2kV HBM. Its small size and robust electrical specifications make it ideal for compact, high-performance electronic applications requiring fast response times and reliable power switching with low gate charge and minimal conduction losses.
NEXPERIA NX138BKMYL High-Speed MOSFET Specifications:
- Drain-source voltage: 60 V
- Gate-source voltage: -20 V to 20 V
- Drain current (Ves = 10 V): 380 mA
- Rds(on): 1.8 - 2.3 Ω at Ves = 10 V, I = 380 mA
- Threshold voltage: 0.5 - 1.5 V
- Power dissipation: 28 W (at Tj = 25°C)
- Junction temperature: -55°C to 150°C
- Operating temperature: -55°C to 150°C
- Thermal resistance junction to ambient: 285 - 330 KW
- Package: DFN1006-3 (SOT883)
- Total gate charge: 0.5 - 0.7 nc
- Input capacitance: 20 pF
- Output capacitance: 3.1 pF
- Soldering: Reflow soldering footprint 1.0 x 0.6 x 0.48 mm
- Electrostatic discharge protection: > 2kV HBM

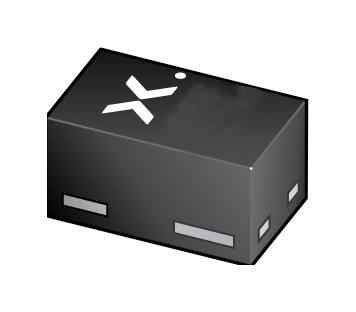

Buy the Nexperia Series NX138BKM MOSFET: NX138BKM
Order the Nexperia NX138BKM high-speed MOSFET online today and benefit from its ultra-compact DFN1006-3 package, fast switching capabilities, and low Rds(on). Designed for switching circuits, relay drivers, and low-side loads, this component offers excellent electrical characteristics, efficient power handling, and robust ESD protection over 2kV. Perfect for space-constrained electronic systems needing dependable, high-performance power switching with minimal conduction loss and fast response times. Get yours now for reliable circuit design.
Buy Nexperia NX138BKM high-speed MOSFET now and experience unmatched reliability and performance in compact switching applications.
Frequently Asked Questions
Where can I buy NEXPERIA NX138BKMYL?
You can click on the BUY or RFQ button to purchase NX138BKMYL from an authorized NEXPERIA distributor.
How do I troubleshoot issues or seek technical support for part NX138BKMYL?
You can download the NX138BKMYL datasheet or visit the NEXPERIA website for support.
Who is the manufacturer of NX138BKMYL?
NEXPERIA
