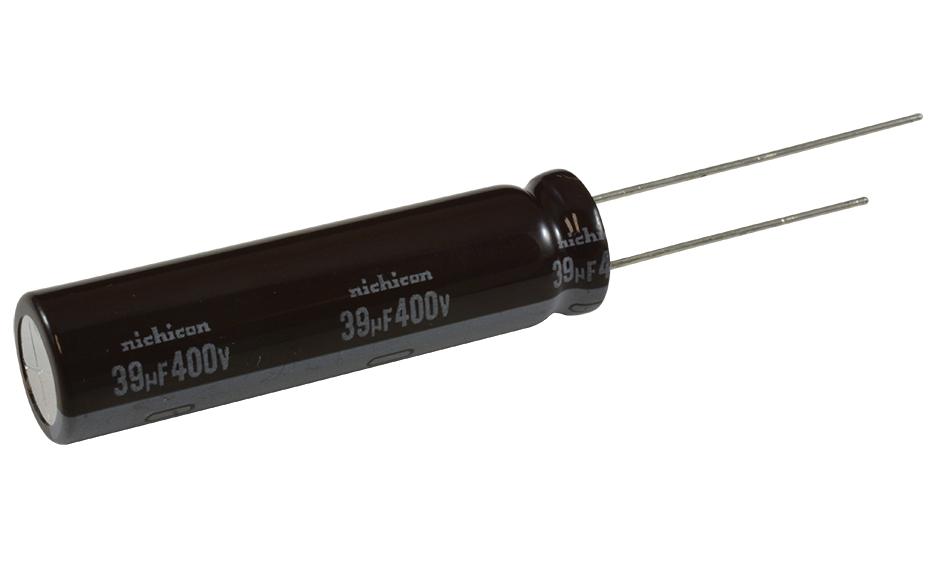

Nichicon UCS2G390MND9 High Reliability Aluminum Capacitor
These high-reliability aluminum electrolytic capacitors are designed for industrial applications, offering high ripple current and long life up to 10,000 hours at +105°C. They feature a compact size suitable for ballast and other demanding environments, with a wide temperature range from -40°C to +105°C. Rated voltages range from 160V to 450V, with capacitance from 6.8µF to 330µF. Compliant with RoHS, these capacitors ensure stability, low leakage current, and high endurance for professional electronic and industrial systems.
Nichicon UCS2G390MND9 High Reliability Aluminum Capacitor Specifications:
- Category Temperature Range: -40°C to +105°C (160-400V), -25°C to +105°C (450V)
- Rated Voltage Range: 160V to 450V
- Rated Capacitance Range: 6.8µF to 330µF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
- Leakage Current: ≤ 0.04CV + 100µA after 1 min at 20°C
- Tang. of loss angle (tan δ): Max 0.20 – 0.24 depending on voltage
- Impedance Ratio (ZT/Z), Max: 6
- Endurance: 10,000 hours at 105°C with ripple current; 8,000 hours for tan δ of 200% or less
- Shelf Life: 1000 hours at 105°C, then voltage treatment at 20°C; meets endurance specs
- Size Codes: Varying dimensions based on capacitance and voltage, e.g., 10x16mm for 100µF 250V
- Material: Aluminum electrolyte, RoHS compliant
- Marking: White lettering on dark brown sleeve
- Configuration: Radial lead type
- Certifications: RoHS compliant
Buy the Nichicon 390MD – Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Order Nichicon aluminum electrolytic capacitors online today for high ripple current capacity and long life in industrial settings. These advanced capacitors are designed to operate reliably up to 10,000 hours at +105°C, ensuring performance stability in power supplies, ballast applications, and other heavy-duty electronic equipment. With a broad voltage range from 160V to 450V and capacitance up to 330µF, they meet RoHS standards and feature low leakage current. Upgrade your systems with professionally rated capacitors that deliver durability and efficiency, all available for easy online purchase.
Buy Nichicon UCS2G390MND9 now and experience unmatched reliability and performance in demanding electronic environments.
Frequently Asked Questions
Where can I buy Nichicon UCS2G390MND9?
You can click on the BUY or RFQ button to purchase UCS2G390MND9 from an authorized Nichicon distributor.
How do I troubleshoot issues or seek technical support for part UCS2G390MND9?
You can download the UCS2G390MND9 datasheet or visit the Nichicon website for support.
Who is the manufacturer of UCS2G390MND9?
Nichicon
