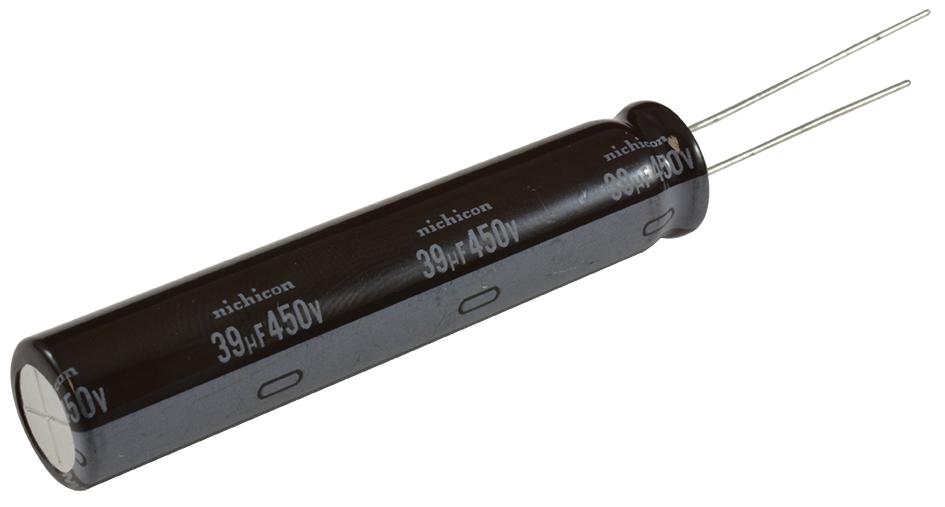

Nichicon UCS2W390MND9 Aluminum Electrolytic Capacitor
High ripple current and long life aluminum electrolytic capacitors suitable for applications with demanding thermal and electrical conditions. Rated voltage ranges from 160V to 450V, with capacitance values between 6.8UF and 330UF. Designed to operate safely at temperatures from -40°C to +105°C, these capacitors offer low leakage current, high stability, and durability for load life of up to 10,000 hours at 105°C. Ideal for ballast, power supplies, and industrial equipment, complying with RoHS standards for environmental safety. Compact radial lead design ensures easy integration into electronic assemblies, providing reliable performance in high-stress environments.
Nichicon UCS2W390MND9 Aluminum Electrolytic Capacitor Specifications:
- Category Temperature Range: -40°C to +105°C (160V-400V), -25°C to +105°C (450V)
- Rated Voltage Range: 160V to 450V
- Rated Capacitance Range: 6.8UF to 330UF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
- Leakage Current: ≤ 0.04CV + 100 UA after 1 min at 20°C
- Dissipation Factor (tan δ): Max 0.20 for 160V-200V, Max 0.24 for 250V-450V
- Impedance Ratio ZT/Z25°C: Max 6 at rated voltage
- Load Life: 8000-10000 hours at 105°C with ripple current
- Shelf Storage: 1000 hours at 105°C, followed by voltage test at 20°C
- Size Codes: 10x16, 10x20, 16x20, 16x25, 18x25, 18x31.5, etc.
- Material: Aluminum casing with blue or dark brown sleeve markings
- Packaging: Radial lead configuration with size-specific dimensions
Buy the Buy Aluminum Electrolytic Capacitors Part Number UCS2W390MND9 Online
Order the Aluminum Electrolytic Capacitor UCS2W390MND9 online today and enjoy fast delivery. Designed for high ripple current and long life, these capacitors operate reliably at temperatures up to 105°C. Perfect for ballast, power supplies, and industrial equipment, they meet RoHS standards and feature a compact radial lead design for easy integration. Trust in the durability and performance of these professional-grade capacitors to ensure your electronic projects are robust, efficient, and long-lasting. Buy now to enhance your electronics with proven reliability.
Buy Aluminum Electrolytic Capacitors UCS2W390MND9 now and experience reliable long-life performance for power and industrial applications.
