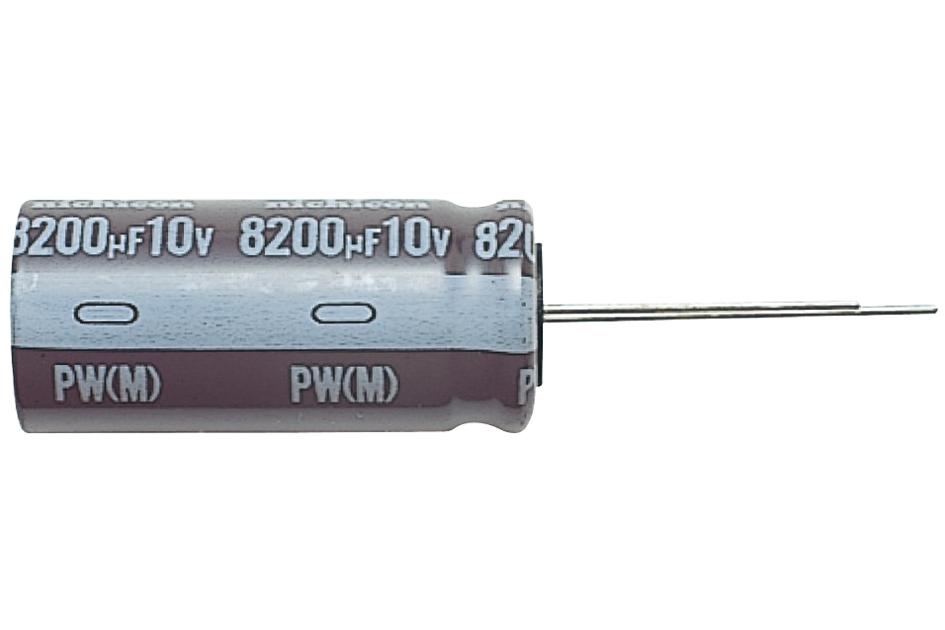

Nichicon UPW1H2R2MDD1TD Aluminum Electrolytic Capacitors
High-quality aluminum electrolytic capacitors designed for switching power supplies, offering small case size, low impedance, and high reliability. Capacitance ranges from 0.47 to 15000UF with a rated voltage up to 450V. These capacitors withstand temperatures from -40°C to +105°C, ensuring stability and durability under demanding conditions. Compliant with RoHS and AEC-Q200 standards, they are ideal for various electronic applications including power electronics, automotive, and industrial equipment, providing low leakage current, long endurance over 8000 hours, and excellent ripple current handling.
Nichicon UPW1H2R2MDD1TD Aluminum Electrolytic Capacitors Specifications:
- Category Temperature Range: -40°C to +105°C
- Rated Voltage Range: 6.3 to 450V
- Rated Capacitance Range: 0.47 to 15000UF
- Capacitance Tolerance: +20% at 120Hz, 20°C
- Leakage Current: Not more than 0.03CV or 4μA after 5 minutes at 20°C
- Impedance Max (20°C / 100KHz): 0.60Ω for 22UF, 2.00Ω for 270UF, 0.60Ω for 220UF, 0.25Ω for 100UF
- Endurance: 8000 hours at 105°C with ripple current, leakage current, and capacitance within specified limits
- Voltage Derating: For capacitance above 1000UF, add 0.08 for each 1000UF increase
- Compliant to RoHS 2011/65/EU and EU 2015/863
- Size and Impedance: Case sizes vary from 4x7mm to 25x40mm with impedance from 0.45Ω to 3.00Ω depending on capacitance and voltage
- Marking: White lettering on dark brown sleeve, radial lead type, series UPW, type UPAC
Buy the Buy Nichicon Aluminum Electrolytic Capacitors Part Number UPW1H2R2MDD1TD Online
Get your Nichicon aluminum electrolytic capacitor UPW1H2R2MDD1TD today online for superior power management and durability. These capacitors feature low impedance, high ripple current capacity, and long endurance, making them ideal for switching power supplies, industrial electronics, and automotive applications. With capacitance from 0.47UF to 15000UF and voltage up to 450V, they meet RoHS and AEC-Q200 standards. Purchase now for dependable quality that ensures stable operation, excellent thermal stability, and low leakage current in your electronic projects.
Order your Nichicon Series UPW1H2R2MDD1TD aluminum electrolytic capacitor today and enhance your power supply with high reliability and low impedance performance.
Frequently Asked Questions
Where can I buy Nichicon UPW1H2R2MDD1TD?
You can click on the BUY or RFQ button to purchase UPW1H2R2MDD1TD from an authorized Nichicon distributor.
How do I troubleshoot issues or seek technical support for part UPW1H2R2MDD1TD?
You can download the UPW1H2R2MDD1TD datasheet or visit the Nichicon website for support.
Who is the manufacturer of UPW1H2R2MDD1TD?
Nichicon
