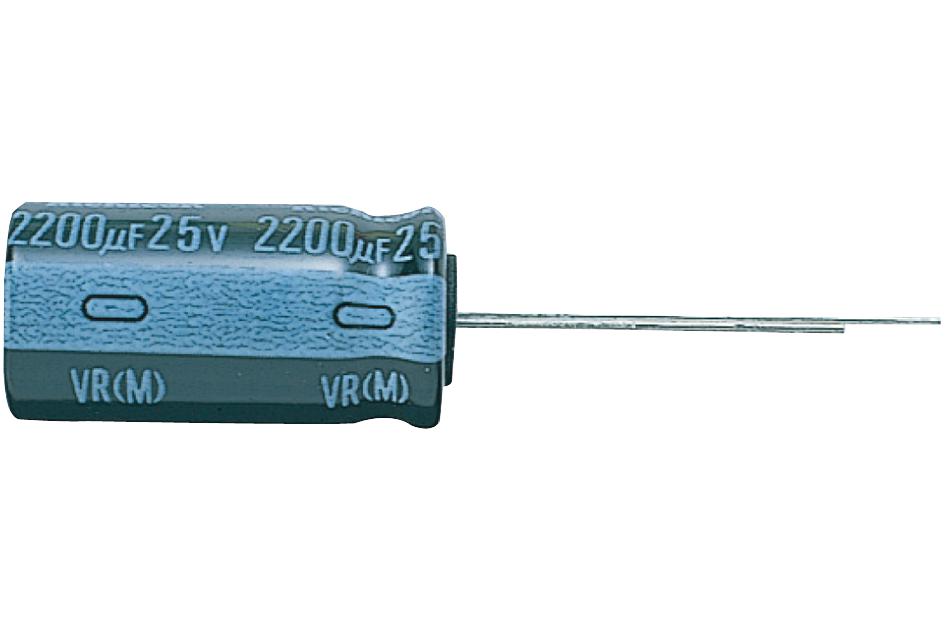

Nichicon UVR1C682MHD Aluminum Electrolytic Capacitors
These aluminum electrolytic capacitors are designed for various electronic applications, offering a temperature range of –40°C to +85°C (6.3V to 400V) and –25°C to +85°C (450V). They provide a broad capacitance range from 0.1F to 33,000F, with high reliability, low leakage current, and stability over time. Suitable for power supplies, filtering, and decoupling, these capacitors meet RoHS standards and feature printed markings for easy identification. Their radial lead configuration ensures robust connections for professional electronic circuit designs.
Nichicon UVR1C682MHD Aluminum Electrolytic Capacitors Specifications:
- Category Temperature Range: –40°C to +85°C (6.3V to 400V), –25°C to +85°C (450V)
- Rated Voltage Range: 6.3V to 450V
- Rated Capacitance Range: 0.1F to 33,000F
- Capacitance Tolerance: 20% at 120Hz, 20°C
- Leakage Current: Not more than 0.03CV or 4μA after 1 minute at rated voltage at 20°C
- Leakage Current (for CV > 1000): 0.01CV or 3μA after 2 minutes at 20°C
- Impedance Ratio: 2Z-25°C/Z-20°C varies from 2 to 15 depending on voltage
- Tangent of Loss Angle: Max 0.28 at 6.3V, decreasing to 0.08 at 100V
- Stability at Low Temperature: Impedance ratios from 2 to 15
- Endurance: 2000 hours at 85°C with voltage applied, capacitance variation within 20%, leakage current within initial specs
- Marking: Printed with white letters on black sleeve, size and type codes included
Buy the Buy Nichicon Aluminum Electrolytic Capacitors Part Number UVR1C682MHD Online
Discover the high-quality Nichicon aluminum electrolytic capacitors, ideal for various electronic applications requiring stable performance and durability. With voltage ratings up to 450V and capacitance up to 33,000F, these capacitors are perfect for power supplies, filtering, and decoupling circuits. Their broad temperature range from –40°C to +85°C ensures reliable operation in demanding environments. Printed markings make identification easy, and they meet RoHS standards for environmental compliance. Purchase online today for fast delivery and trusted performance in your electronic projects.
Get Nichicon UVR1C682MHD today—designed for high capacitance stability and long-lasting reliability in power supply circuits.
Frequently Asked Questions
Where can I buy Nichicon UVR1C682MHD?
You can click on the BUY or RFQ button to purchase UVR1C682MHD from an authorized Nichicon distributor.
How do I troubleshoot issues or seek technical support for part UVR1C682MHD?
You can download the UVR1C682MHD datasheet or visit the Nichicon website for support.
Who is the manufacturer of UVR1C682MHD?
Nichicon
