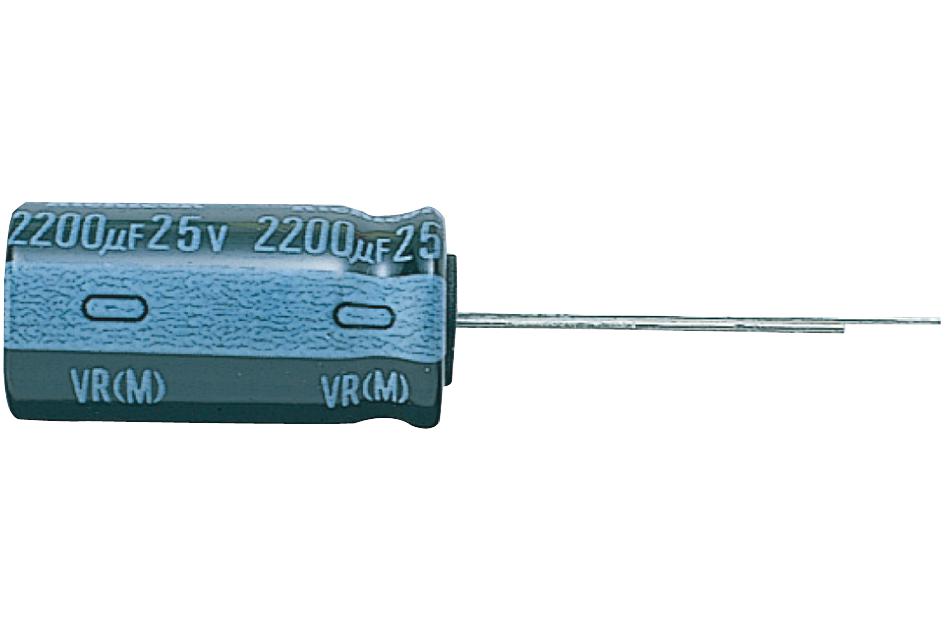

Nichicon UVR1H682MRD6 Aluminum Electrolytic Capacitors
The UVR series aluminum electrolytic capacitors from Nichicon offer a wide temperature range from -40°C to +85°C for voltages up to 400V and -25°C to +85°C for higher voltages. They feature high capacitance values from 0.1F to 33000F with ±20% tolerance at 120Hz, 20°C. Designed for durability, these capacitors maintain stability over temperature and time, with low leakage current and high endurance. Suitable for power supplies and electronic circuits requiring reliable performance, their robust construction ensures long service life under demanding conditions.
Nichicon UVR1H682MRD6 Aluminum Electrolytic Capacitors Specifications:
- Category Temperature Range: —40 to +85°C (6.3V to 400V), -25 to +85°C (450V)
- Rated Voltage Range: 6.3 to 450V
- Rated Capacitance Range: 0.1 to 33000F
- Capacitance Tolerance: ±20% at 120Hz, 20°C
- Leakage Current: Not more than 0.03CV or 4μA after 1 min at rated voltage, 0.01CV or 3μA after 2 mins at 20°C
- Tan δ Max: 0.28 at 6.3V, decreasing with higher voltages
- Impedance Ratio (Z-25/20°C): 2
- Endurance: 2000 hours at 85°C with less than 20% capacitance change and leakage current within initial limits
- Measurement Frequency: 120Hz
- Certifications: RoHS compliant, UL Compatible
Buy the Nichicon Series UVR Aluminum Electrolytic Capacitors: UVR1H682MRD6
Order Nichicon UVR series aluminum electrolytic capacitors online today to ensure your power and electronic circuits operate reliably. These capacitors feature a broad voltage range up to 450V, wide temperature tolerance from -40°C to +85°C, and high capacitance values up to 33000F. Engineered for durability, they deliver stable performance over time with low leakage currents and high endurance. Perfect for power supplies, industrial equipment, and electronics requiring long-term stability, purchase now to benefit from fast delivery and proven quality.
Buy Nichicon UVR1H682MRD6 aluminum electrolytic capacitors now and experience unmatched reliability and performance for power supply and electronic circuit applications.
Frequently Asked Questions
Where can I buy Nichicon UVR1H682MRD6?
You can click on the BUY or RFQ button to purchase UVR1H682MRD6 from an authorized Nichicon distributor.
How do I troubleshoot issues or seek technical support for part UVR1H682MRD6?
You can download the UVR1H682MRD6 datasheet or visit the Nichicon website for support.
Who is the manufacturer of UVR1H682MRD6?
Nichicon
