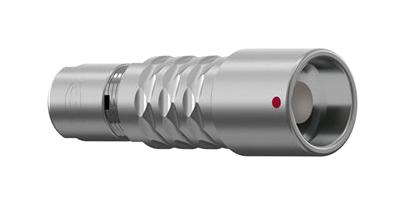

ODU-USA K11K0CP05LJG05000 Industrial Connector
This high-quality connector features a compact design with a durable Cu-Legierung housing, rated IP 68 for protection against dust and water. It supports a current load of up to 15 A and is designed for cable sizes ranging from 1.0 to 4.5 mm, with various coding options for different insulation diameters. The connector is suitable for demanding industrial environments, offering reliable connections with soldered contacts and PEEK insulation for high temperature resistance. Its robust construction ensures long-term performance and ease of installation in complex systems.
ODU-USA K11K0CP05LJG05000 Industrial Connector Specifications:
- Protection Class: IP 68
- Current Load: 15 A
- Housing Material: Copper alloy
- Connection Type: Solder contact
- Insulation Material: PEEK
- Contact Diameter: 0.9 mm
- Cable Size Range: 1.0 - 4.5 mm
- Maximum Test Voltage: 4.35 kV AC
- Surface Finish: Matt
- Tolerances: General tolerance according to DIN ISO 8015
- Connection Termination: 6.38 mm
- Applicable Standards: DIN EN 61984:2009, DIN EN 67984:2009
- Revised Date: 03.08.2018
- Package: 1 connector per unit
Buy the Brand Series Industrial Connector: K11K0CP05LJG05000
Secure your industrial connections today by purchasing the high-performance K11K0CP05LJG05000 connector online. Designed with robust Cu-Legierung housing and PEEK insulation, it offers IP 68 protection, supporting up to 15 A current load. Suitable for cable sizes ranging from 1.0 to 4.5 mm, it features soldered contacts for a reliable connection. Its compact design, combined with high temperature resistance and adherence to industry standards, makes it ideal for demanding industrial applications. Order now for dependable performance and easy installation.
Buy K11K0CP05LJG05000 from our online store now and enjoy reliable, high-performance industrial connections with IP 68 protection and durable materials.
