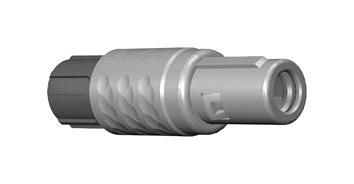

ODU-USA S11M07P14MCC05270 Industrial connector
The S11M07P14MCC05270 is a high-quality industrial connector designed for reliable electrical connections in demanding environments. Made from Cu-alloy with PEEK insulation bodies, it supports an insulation voltage of 1.2 KV OC according to SAE AS 13441 standards. The connector features a front surface design compliant with EC 512-3 / VDE 0298 T4, IP 50 protection class, and a sturdy housing that withstands mechanical stress. Suitable for cable AWG 28, it ensures safety, durability, and efficient power transmission in industrial applications.
ODU-USA S11M07P14MCC05270 Industrial connector Specifications:
- Material: Cu-alloy contacts
- Insulation Body: PEEK
- Protection Class: IP 50
- Voltage Rating: 1.2 KV OC (SAE AS 13441)
- Current Load: Up to 6.5 A depending on the wire size
- Wire Range: AWG 28 (minimum 2.7 mm², maximum 6.5 mm²)
- Housing Material: EC 512-3 / VDE 0298 T4 compatible plastic
- Surface Finish: Finned surfaces for reliable connection
- Temperature Range: -55°C to +105°C
- Connector Type: Solder
- Backnut and Cable Collet: Provided for secure locking
- Color Options: Gray, blue, green, black, white, red, yellow
- Standards Compliance: DIN 180 2768, IEC 512-3
- Protection Features: IP 50, robust construction for industrial environments
- Application: Suitable for industrial automation, control systems, and power distribution
Buy the Industrial Series Connector: S11M07P14MCC05270
Purchase the S11M07P14MCC05270 industrial connector online to ensure secure, durable, and high-performance electrical connections. Made with Cu-alloy contacts and PEEK insulation, it offers excellent resistance to mechanical stress and environmental conditions. Suitable for wiring AWG 28 cables, it supports an insulation voltage of 1.2 KV OC as per SAE standards. The IP 50 protection class guarantees safety and reliability in demanding industrial applications. Perfect for automation, power distribution, and control systems, this connector ensures quick installation and long-term performance.
Get ODU S11M07P14MCC05270 today—built for reliable connections and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy ODU-USA S11M07P14MCC05270?
You can click on the BUY or RFQ button to purchase S11M07P14MCC05270 from an authorized ODU-USA distributor.
How do I troubleshoot issues or seek technical support for part S11M07P14MCC05270?
You can download the S11M07P14MCC05270 datasheet or visit the ODU-USA website for support.
Who is the manufacturer of S11M07P14MCC05270?
ODU-USA
