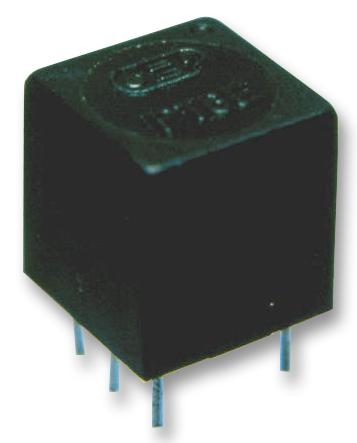

OEP (OXFORD ELECTRICAL PRODUCTS) PT6E Pulse Transformer
The PT6E transformer is an encapsulated open or PCB-mounted component designed for wide band and pulse applications, especially in thyristor and triac control systems. It provides isolation between firing circuits and loads, with a proof voltage of 5.0kV and an output voltage-time product of 200V psec. The transformer features a max pulse current of 200mA, bandwidth from 3kHz to 1MHz, and a compact body size with dimensions of W15.30 mm, H16.00 mm, and D15.30 mm. Suitable for power supply and switching applications.
OEP (OXFORD ELECTRICAL PRODUCTS) PT6E Pulse Transformer Specifications:
- Proof Voltage: 5.0kV
- Output Voltage-Time Product: 200V psec
- Max. Output Pulse Current: 200mA (peak)
- Bandwidth: 3kHz — 1 MHz
- Construction: Encapsulated
- Ratio Options: 1:1, 1:1+1, 2:1, 2:1+1, 1:14+1, etc.
- Pin Layout: As shown in diagram
- Body Size Excluding Pins: W15.30 mm, H16.00 mm, D15.30 mm
- Insulation Class: 2 per BS 415
- Impedance: 3mH (1:1), 12mH (2:1), 20mH (1:14+1/4), 30mH (8:141), etc.
- Frequency Range: 3 kHz to 1 MHz
