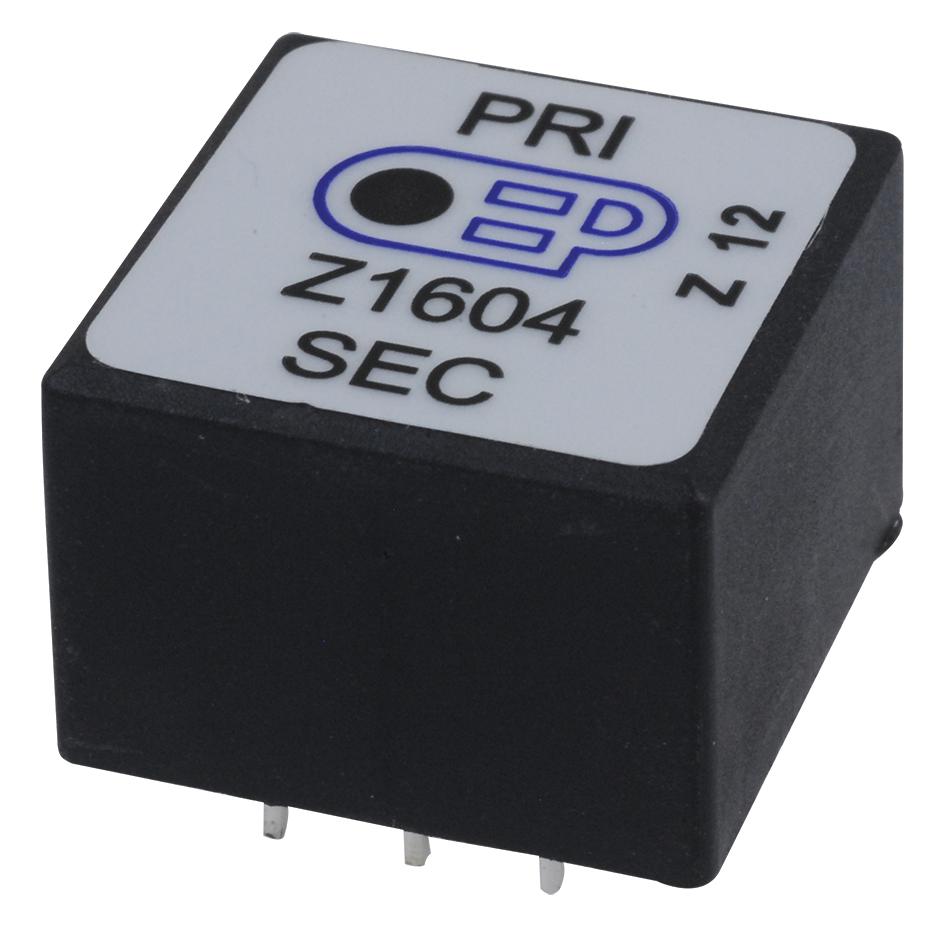

OEP (OXFORD ELECTRICAL PRODUCTS) Z1604 Audio Transformer
The Z1604 from OEP is an industrial-grade audio transformer designed for high-performance audio and power management applications. Encased in a flame-retardant epoxy resin within a sturdy glass-filled nylon housing, it provides excellent environmental and mechanical protection. Featuring a 1:1 turns ratio with impedance of 600 ohms on both primary and secondary sides, it handles 2 milliwatts power and has a frequency response from 30Hz to 25kHz at 0.2mW. With primary DC resistance of 109 ohms, secondary resistance of 134 ohms, and insulation strength over 1.5kV RMS, it is ideal for professional and industrial audio setups and control systems.
OEP (OXFORD ELECTRICAL PRODUCTS) Z1604 Audio Transformer Specifications:
- Turns ratio: 1:1, C.T.
- Impedance matching: 600Q to 600Ω C.T.
- Primary DC resistance: 109Ω +/-15%
- Secondary DC resistance: 134Ω +/-15%
- Power handling: 2mW at 600Ω for <1% THD at 60Hz
- Frequency response at 2mW: 60Hz - 25kHz +/- 0.5dB
- Frequency response at 0.2mW: 30Hz - 25kHz +/- 0.7dB
- Total secondary DC resistance: 134Ω +/-15%
- Inductance: Primary 7H min., Secondary 1.79H min.
- Return loss: better than 19dB (300Hz - 3.4kHz)
- Hi-pot insulation: 2kVAC for 2 seconds
- Operating temperature: -20°C to +75°C
- Storage temperature: -40°C to +125°C
- Material: Fully encapsulated flame-retardant epoxy resin in glass-filled nylon housing
- Insulation strength: >1.5kV RMS
Buy the OEP Series Z1604 Audio Transformer: 600Q Impedance Matching
Purchase the OEP Z1604 audio transformer online today for excellent impedance matching and wide frequency response, ideal for industrial, professional audio, and control system applications. This high-quality transformer features 600 ohms impedance on both sides, a 1:1 turns ratio, and handles power of 2 milliwatts, ensuring optimal performance. Its sealed epoxy resin encapsulation offers maximum environmental and mechanical protection, with insulation strength exceeding 1.5kV RMS. Easy to order online, this transformer guarantees durability and reliable performance for your technical requirements.
Get OEP Z1604 audio transformer today—built for reliable industrial and professional audio performance.
