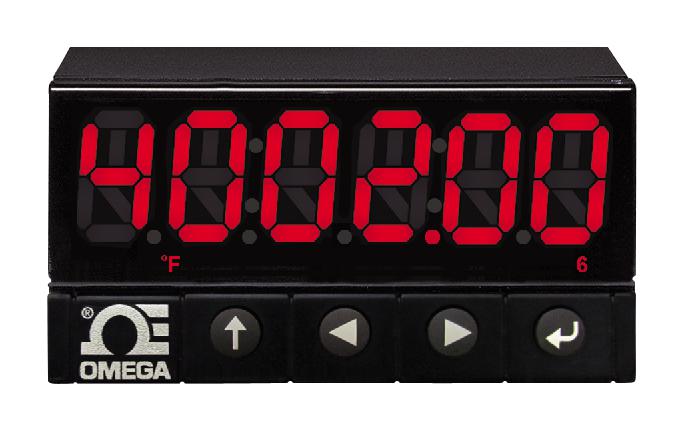

OMEGA CN8DPT224C24DC Process Controller
The CN8DPT224C24DC is a versatile, high-performance process controller featuring multiple inputs including thermocouples, RTDs, thermistors, voltage, current, and strain. It offers extensive programmability with up to 99 programs, 16 ramps and soaks, and full autotune PID with fuzzy logic optimization for precise control. Equipped with a bright 4-digit, 9-segment LED display with wide viewing angles, it supports dual relay, DC pulse, analog, and digital outputs, plus Ethernet, USB, and serial communications for wide industrial applications such as temperature, strain, and process control, ensuring reliability and ease of integration.
OMEGA CN8DPT224C24DC Process Controller Specifications:
- Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current, strain
- Thermocouple Input (ITS 90): K, J, T, E, R, S, B, C, N
- RTD Input: 100/500/1000 Q, 2-, 3-, or 4-wire, 0.00385, 0.00392, or 0.003916 curve
- Thermistor Input: 2252 Q, 5K Q, 10K Q
- Process Voltage/Current: -100 to 100 mV, -1 to 1 V, -10 to 10 Vde; 4 to 20 mA, 0 to 24 mA
- Input Impedances: 10 MΩ for voltage/strain, 5 Ω for process current
- Accuracy: Thermocouple 0.05°C at 25°C, RTD 0.04°C/°C, strain 50 ppm/°C
- Sampling Rate: Up to 20 samples/sec with 24-bit ADC
- Display: 4-digit, 9-segment LED, wide angle
- Outputs: 2-6 programmable outputs including SPDT/SPST relays, DC pulse, analog voltage/current, isolated or non-isolated
- Communications: USB host, Ethernet RJ45, serial RS232/RS485 with MODBUS and ASCII protocols
- Power Supply: 90-240 Vac (Line Voltage) or 12-36 Vdc (Low Voltage option)
- Isolation: Inputs, outputs, and relays tested to UL, cUL, CE standards; 2300 Vac surge test
- Dimensions: 48 mm (1.89”) height, 48W x 127 mm D; suitable for panel mounting with quick access
Buy the Platinum CN8DPT224C24DC – Reliable Process Control for Industrial Applications
Purchase the Platinum CN8DPT224C24DC online today—designed for demanding industrial process measurement. It offers extensive input compatibility, up to 99 programs, and precise PID control with fuzzy logic. The bright LED display ensures easy verification, while multiple programmable outputs including relays, DC pulse, and analog signals provide flexibility. Its Ethernet, USB, and serial interfaces facilitate seamless integration into factory automation or laboratory setups. Reliable, easy to configure, and ideal for temperature, strain, and process control across various industries.
Get Platinum CN8DPT224C24DC today—built for precision with extensive input options and programmable outputs for industrial process control.
Frequently Asked Questions
Where can I buy OMEGA CN8DPT224C24DC?
You can click on the BUY or RFQ button to purchase CN8DPT224C24DC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN8DPT224C24DC?
You can download the CN8DPT224C24DC datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN8DPT224C24DC?
OMEGA
