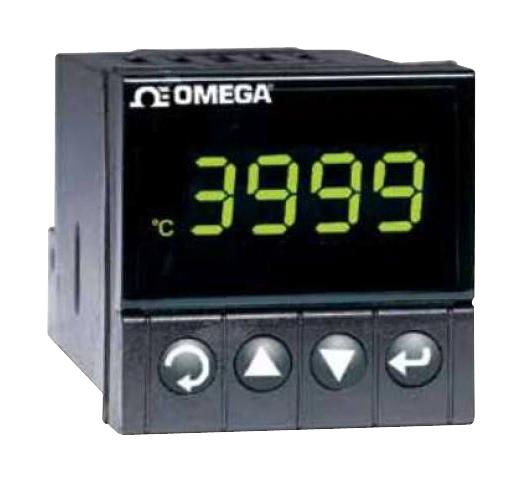

OMEGA CNIS1633C24 Process Controller
The CNi Series is a family of highly precise, microprocessor-based controllers designed for temperature, process, and strain measurements. These PID controllers feature universal inputs capable of handling thermocouples, RTDs, analog voltage, and current signals. They include programmable color displays, embedded web servers, serial communication options, and built-in excitation for transducers. Suitable for industrial automation, these units offer configurable control and alarm outputs, fast response times, and robust environmental ratings, making them ideal for demanding process control applications.
OMEGA CNIS1633C24 Process Controller Specifications:
- Input Types: Thermocouple, RTD, analog voltage, analog current
- Input Accuracy: 0.03% reading
- Temperature Stability RTD: 0.04°C/°C
- Thermocouple Stability: 0.05°C/P°C at 25°C
- Display: 4-digit LED, programmable color (green, amber, red)
- Communication: Optional Ethernet, RS232, RS485 (MODBUS, ASCII)
- Control Outputs: 2 relay contacts, SSR, analog voltage/current
- Environmental Rating: NEMA 4X/IP65 front bezel, operating from 0 to 55°C
- Power Supply: 90-240 Vac, optional 24 Vac ,12-36 Vdc
- Dimensions (H x W x D): 48 x 48 x 127 mm (i/16 Series), 48 x 96 x 127 mm (i/8 Series), 25.4 x 48 x 127 mm (i/32 Series)
Buy the Buy Omega CNi Series Part Number CNIS1633C24 Online
Purchase the Omega CNi Series process controller online today for reliable temperature, strain, and process control. Featuring programmable displays, Ethernet connectivity, and extensive input options, this controller simplifies system integration. Its robust build ensures durability in industrial environments, while optional web server and serial communication capabilities provide advanced data management. Ideal for automation and monitoring tasks, it offers fast response, configurable outputs, and easy setup, making it an essential component for efficient and precise process control in manufacturing, laboratory, and environmental applications.
Get Omega CNi Series CNIS1633C24 today—built for precision, versatility, and long-lasting durability.
Frequently Asked Questions
Where can I buy OMEGA CNIS1633C24?
You can click on the BUY or RFQ button to purchase CNIS1633C24 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CNIS1633C24?
You can download the CNIS1633C24 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CNIS1633C24?
OMEGA
