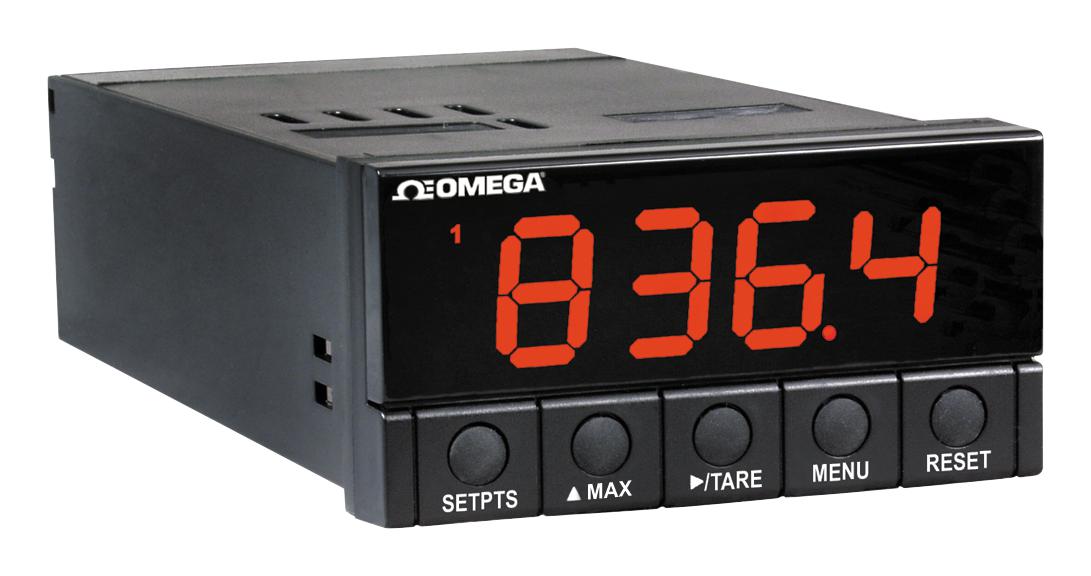

OMEGA DP25BTC Process and Thermocouple Panel Meter
The DP25B Series offers versatile, high-visibility panel meters for measuring thermocouple, RTD, process, and strain inputs, featuring a bright 4-digit display with customizable color options. It includes optional relays and isolated or non-isolated analog output, suitable for industrial applications requiring precise signal conditioning. The microprocessor-based design ensures accurate readings, fast response times, and features like front-panel scaling, tare functions, and digital filtering. Power options support 115 Vac, 230 Vac, or low-voltage DC, with durable NEMA 4 front bezel for harsh environments.
OMEGA DP25BTC Process and Thermocouple Panel Meter Specifications:
- Display: 4-digit, 21 mm (0.83) LED, color: RED, AMBER, or GREEN, programmable
- Analog-to-Digital Technique: Dual slope, 15-bit resolution
- Input Types: Thermocouple (J, K, T, J DIN), RTD 100 Q Pt, process voltage/current, strain gauge
- Relay Outputs: Two Form C, 5 A 250 VAC, programmable alarms
- Analog Output: 0-10 V, 4-20 mA, 0-20 mA, scalable or control proportional
- Power Supply: 115 Vac, 230 Vac, 10-32 Vdc, 26-56 Vdc, max 8-11 W
- Operating Temperature: 0 to 50°C (32 to 122°F), storage -40 to 85°C
- Dimensions: 48 H x 96 W x 152 mm D (1.89 x 3.78 x 6.0 inches)
- Panel Cutout: 45 H x 92 W mm (1.772 x 3.622 inches)
- Isolation: 2500V dielectric strength, 60 dB NMR, 120 dB CMR
- Input Resistance: 100 MΩ for thermocouples, 100 MΩ for voltage, 5 Ω for current
- Accuracy: ±0.50°C (0.9°F) after warm-up, ±0.03% rdg for strain/process
- Temperature Coefficient: +50 PPM/°C
- Warm-up Time: 30 minutes to rated accuracy
- Display Customization: Programmable color in RED, AMBER, or GREEN
Buy the Omega DP25B – Reliable Industrial Signal Conditioning for Thermocouple RTD Process Strain meters
Purchase the Omega DP25B Series online today for reliable, high-accuracy measurement of thermocouples, RTDs, process signals, and strain gauges. Featuring a bright, programmable display in red, amber, or green, these versatile panel meters include optional relays and analog outputs. Suitable for demanding industrial environments, they offer fast response times, front-panel scaling, tare functions, and robust power options. Ensure accurate process control and signal conditioning with easy online ordering of this durable, microprocessor-based instrument.
Get Omega DP25B today—designed for precise measurements and durable industrial performance.
