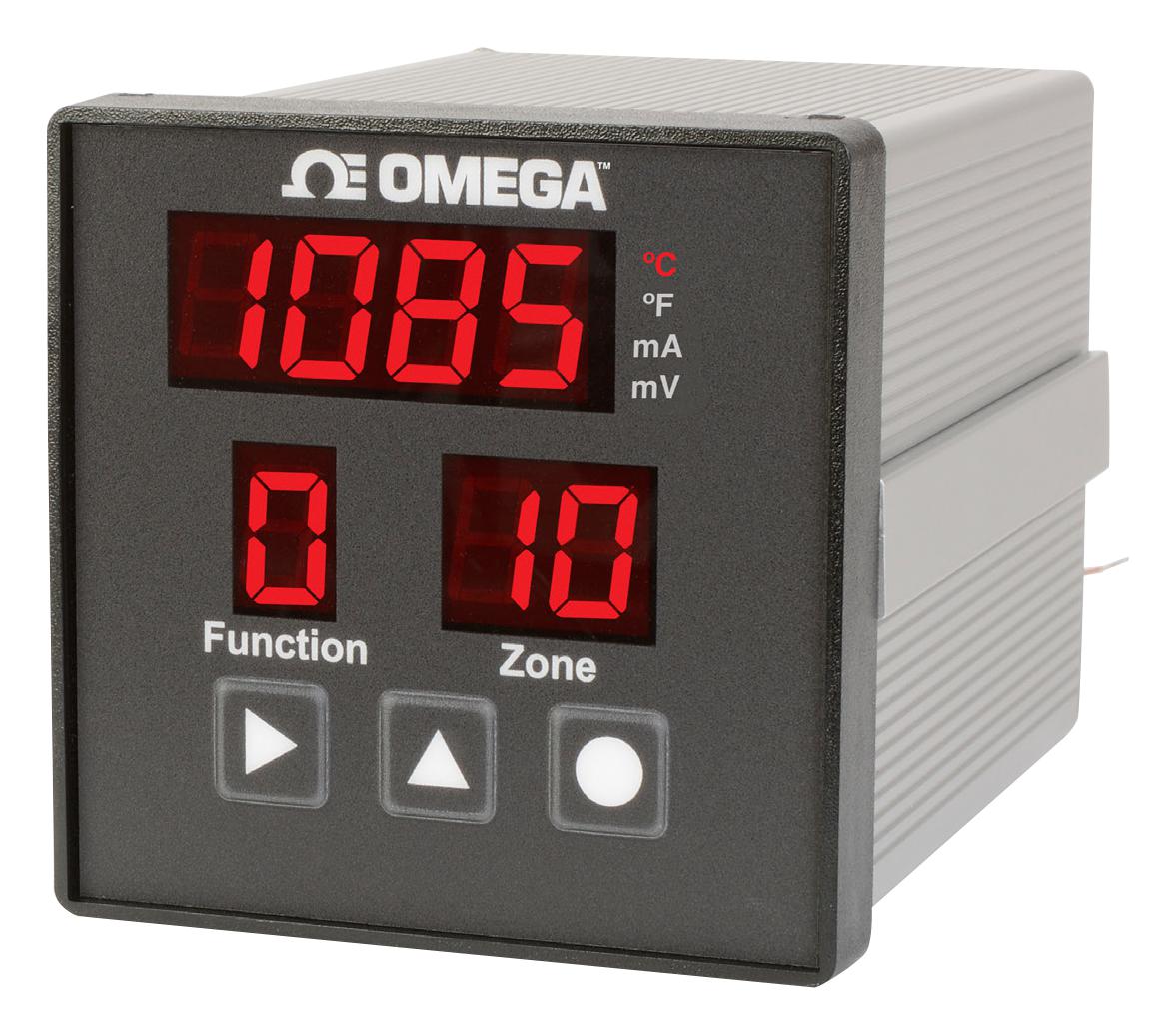

OMEGA DP606ADC Multi-Channel Panel Meter
The DP606A and DP612A Series are versatile multi-channel panel meters designed for industrial measurements, automation, and testing. They support up to 12 sensors with universal inputs like thermocouples, RTDs, and process signals. Featuring firmware-selectable input types, user-programmable alarms, and serial communication options including Modbus®, these rugged meters ensure accurate readings under wide temperature ranges. The compact aluminum DIN case offers durability and easy integration for OEM, aerospace, automotive, and power generation applications, providing precise data logging and control for demanding environments.
OMEGA DP606ADC Multi-Channel Panel Meter Specifications:
- Number of Zones: 6 or 12
- Display: 15 mm 7-seg LED
- Scan Time: 400ms
- Input Types: Thermocouples J, K, T, E, R, S, B, C, N; RTD 2/3 wire; 4-20mA; 0-1V
- Resolution: 1°, 1mV, 0.01mA
- Accuracy: ±1°C or better depending on input type
- ADC: 24-bit Sigma Delta
- Power Supply: 120/240 Vac ±10%; 9-36 Vdc
- Isolation: Power to input 2.3k Vac; Serial 2.3k Vac; Input to serial 500 Vac
- Alarm Relays: 5A max load, AC 240 Vac or DC 36 Vdc, de-energizes on alarm
- Operating Temp: -20 to 70°C
- Dimensions: 95 x 95 x 135 mm, cutout 92 x 92 mm
- Weight: 725g
- Certifications: UL, CSA, RoHS, EMC, CE, ECCN EAR99
Buy the Buy Omega Multi-Channel Panel Meter Part Number DP606A-DC Online
Order the Omega DP606A-DC multi-channel panel meter online today to enhance your industrial measurement system. This rugged device supports up to 6 sensors with thermocouple, RTD, and process input options. Featuring firmware selectable input types, user-settable alarms, and serial communication via Modbus®, it delivers accurate, real-time data in demanding environments. Its compact aluminum case offers durability for OEM, aerospace, automotive, and automation applications. Purchase now for fast delivery and reliable, precise monitoring in your industrial processes.
Buy Omega DP606A-DC now and experience unmatched reliability, precise thermocouple and RTD measurements, and durable industrial-grade design.
Frequently Asked Questions
Where can I buy OMEGA DP606ADC?
You can click on the BUY or RFQ button to purchase DP606ADC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP606ADC?
You can download the DP606ADC datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP606ADC?
OMEGA
