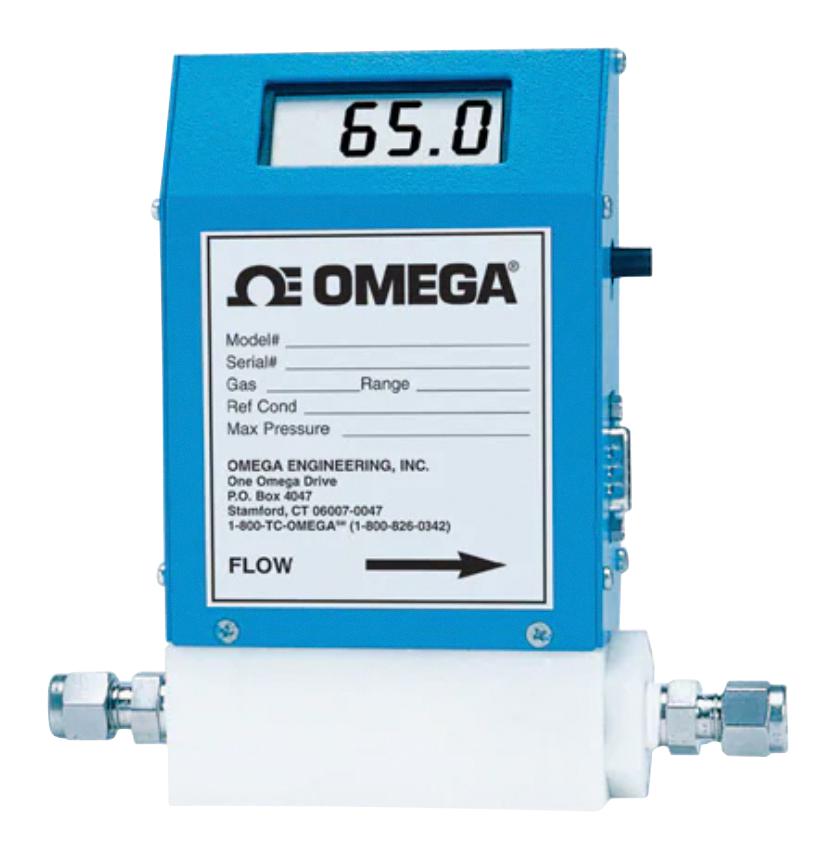

OMEGA FMAA2305 Gas Flow Controller
The FMA-A2300 series from Omega offers high-performance mass flow meters and controllers designed for precise, direct measurement of gas flow rates up to 100 SLM. Utilizing advanced thermal technology, these devices require no temperature or pressure corrections, ensuring accuracy and repeatability with ±1% full-scale precision. The models feature linear 0-5 V or 4-20 mA outputs, with options including LCD displays. Suitable for non-corrosive gases, they operate within a temperature range of 0 to 50°C and have an adjustable turndown ratio of 100:1, making them ideal for various industrial applications.
OMEGA FMAA2305 Gas Flow Controller Specifications:
- Accuracy: ±1% of full scale including linearity
- Repeatability: ±0.15% full scale
- Turndown Ratio: 100:1
- Response Time: 5 seconds
- Operation Temperature: 0 to 50°C (32 to 122°F)
- Temperature Coefficient: 0.05% full scale per 1°C
- Pressure Coefficient: 0.01% full scale per psi
- Maximum Gas Pressure: 250 psig (Polyacetal), 500 psig (316 SS)
- Wetted Materials: Polyacetal, FKM O-rings, optional 316 stainless steel
- Connections: 4 FNPT standard, 4
Buy the Omega Series FMA-A2000 Gas Mass Flow: FMA-A2305
Enhance your gas flow measurement accuracy with the Omega FMA-A2305 mass flow controller. This device features thermal technology for direct, correction-free mass flow readings up to 100 SLM. It offers linear 0-5 V and 4-20 mA outputs, ensuring compatibility with most control systems. With built-in LCD display options, it provides real-time monitoring. Designed for non-corrosive gases, it operates reliably within 0 to 50°C, making it ideal for industrial, laboratory, and manufacturing environments that demand precise gas flow control.
Order your Omega Series FMA-A2305 mass flow controller today and ensure precise, reliable gas flow measurement for your industrial applications.
Frequently Asked Questions
Where can I buy OMEGA FMAA2305?
You can click on the BUY or RFQ button to purchase FMAA2305 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part FMAA2305?
You can download the FMAA2305 datasheet or visit the OMEGA website for support.
Who is the manufacturer of FMAA2305?
OMEGA
