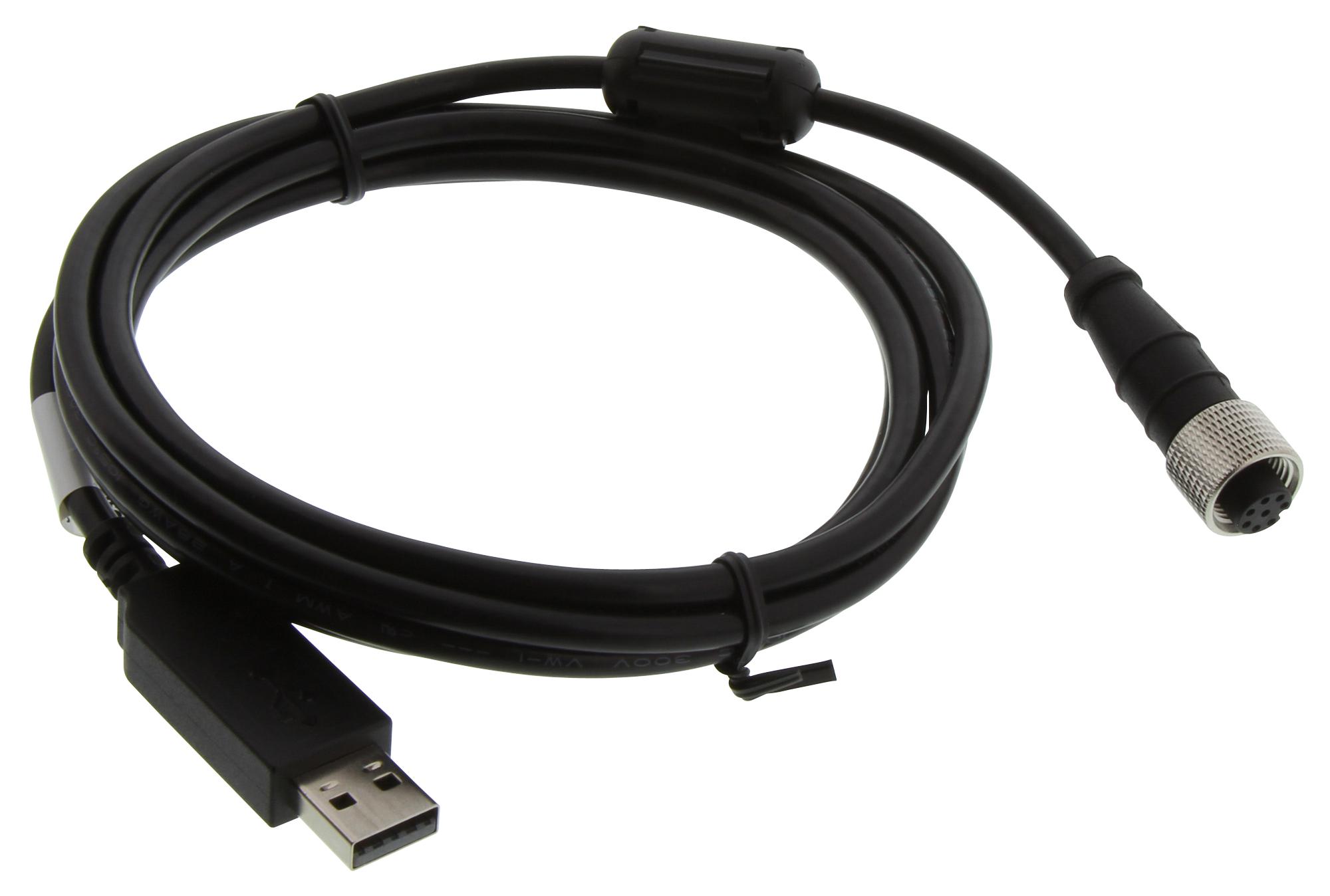

OMEGA IF001 Smart Sensor Interface
The Omega IF-001 Smart Interface cable simplifies configuration and monitoring of Omega Smart Probes by providing a user-friendly USB 2.0 interface with Modbus RTU/ASCII compatibility. It appears as a serial port on Windows, iOS, and Linux devices, supporting quick setup via PnP and SYNC software. The device features an 8-pin M12 connector for powering external smart sensors with 3.3 Vdc, includes a power monitor to prevent short circuits, and is rated NEMA 6 IP67 for environmental protection. It enables seamless integration and data management for industrial sensing applications.
OMEGA IF001 Smart Sensor Interface Specifications:
- Environmental Rating: NEMA 6 IP67 when mated (M12 end only)
- Operating Temperature: -20 to 80°C (-4 to 176°F), non-condensing
- Vibration Resistance: 10 Gs at 10 Hz to 500 Hz (M12 end only)
- Power Supply: USB powered, supplies up to 100 mA to sensor
- Interface: USB 2.0 compliant
- Supports USB PnP setup and SYNC configuration software
- Connector: 8-pin M12 providing 3.3 Vdc power for external smart sensor
- Environmental Durability: Suitable for industrial environments with NEMA 6 IP67 rating
- Agency Approvals: CE, WEEE
Buy the Omega IF-001 Reliable USB Interface for Industrial Sensor Monitoring
Enhance your industrial sensing setup with the Omega Smart Probe Interface which offers plug-and-play USB connectivity supporting Modbus RTU and ASCII protocols. Designed for easy configuration and monitoring, it appears as a serial port on Windows, iOS, and Linux systems. Its rugged NEMA 6 IP67 rated enclosure ensures durability in harsh environments. The device features an 8-pin M12 connector delivering 3.3 Vdc power, integrated power monitoring for safety, and supports USB PnP and SYNC software. Ideal for industrial automation applications requiring reliable sensor management.
Buy Omega IF-001 now and experience seamless sensor configuration with reliable USB connectivity and robust environmental protection.
Frequently Asked Questions
Where can I buy OMEGA IF001?
You can click on the BUY or RFQ button to purchase IF001 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part IF001?
You can download the IF001 datasheet or visit the OMEGA website for support.
Who is the manufacturer of IF001?
OMEGA
