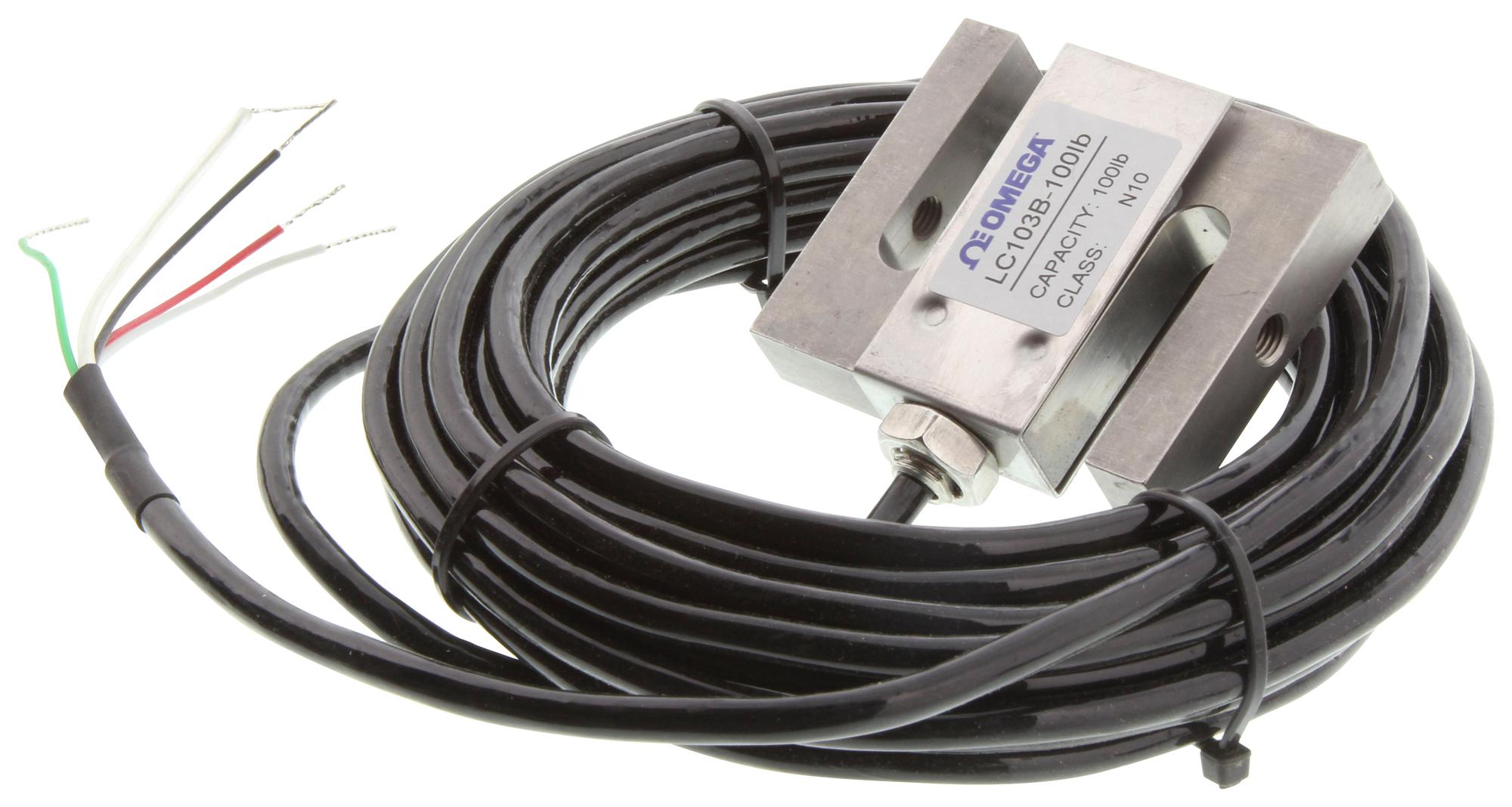

OMEGA LC103B100 Stainless Steel S-Beam Load Cell
Omega's LC103B stainless steel S-beam load cells are designed for high accuracy tension and compression measurement, suitable for applications like tank weighing, hoppers, and truck scales. These rugged, IP67-rated sensors provide excellent linearity and temperature stability, meeting OIML R60 C3 accuracy class for precise metrology. Constructed from corrosion-resistant stainless steel, they feature sealed protection against oil, water, and corrosion, ensuring reliable operation in harsh environments. Available in capacities from 25 to 20,000 pounds, these versatile load cells incorporate standard 4-conductor shielded cables, with outputs around 3.04 mV/V, making them ideal for industrial force and weighing applications.
OMEGA LC103B100 Stainless Steel S-Beam Load Cell Specifications:
- Accuracy: Class C3 (>25 lb) according to OIML R60
- Output sensitivity: 3.04 mV/V ±0.008
- Maximum load intervals: 3000
- Verification interval ratio: 1:10000
- Combined error: +0.020% FS
- Safe overload: 150% FS
- Ultimate overload: 300% FS
- Zero balance: ±1.0% FS
- Excitation voltage: 5 to 12 V DC (recommended), max 18 V DC
- Input resistance: 430 ±60 Ω
- Output resistance: 351 ±2 Ω
- Insulation resistance: ≥5000 MΩ at 50 V DC
- Operating temperature: -35°C to 65°C
- Storage temperature: -40°C to 70°C
- Material: Stainless steel
- Ingress protection: IP67
- Thread sizes: 1/4” UNF to 1 1/8” UNF
- Dimensions vary by capacity, with standard sizes from 50.8 mm (2 in) to 76.2 mm (3 in)
Buy the Buy Omega Stainless Steel S-Beam Load Cell Part Number LC103B-100 Online
Purchase the Omega stainless steel S-beam load cell LC103B-100 online today to ensure precise tension and compression measurement for your industrial weighing needs. This high accuracy load cell features robust stainless steel construction, IP67 ingress protection, and excellent linearity, making it suitable for harsh environments. Designed for easy installation and versatile applications such as crane scales, tank weighing, and hopper measurements, it comes with full calibration certification. Maximize efficiency and reliability by ordering this dependable force sensor directly from trusted suppliers now.
Buy Omega LC103B-100 now and experience unmatched reliability and performance in tension and compression force measurement.
