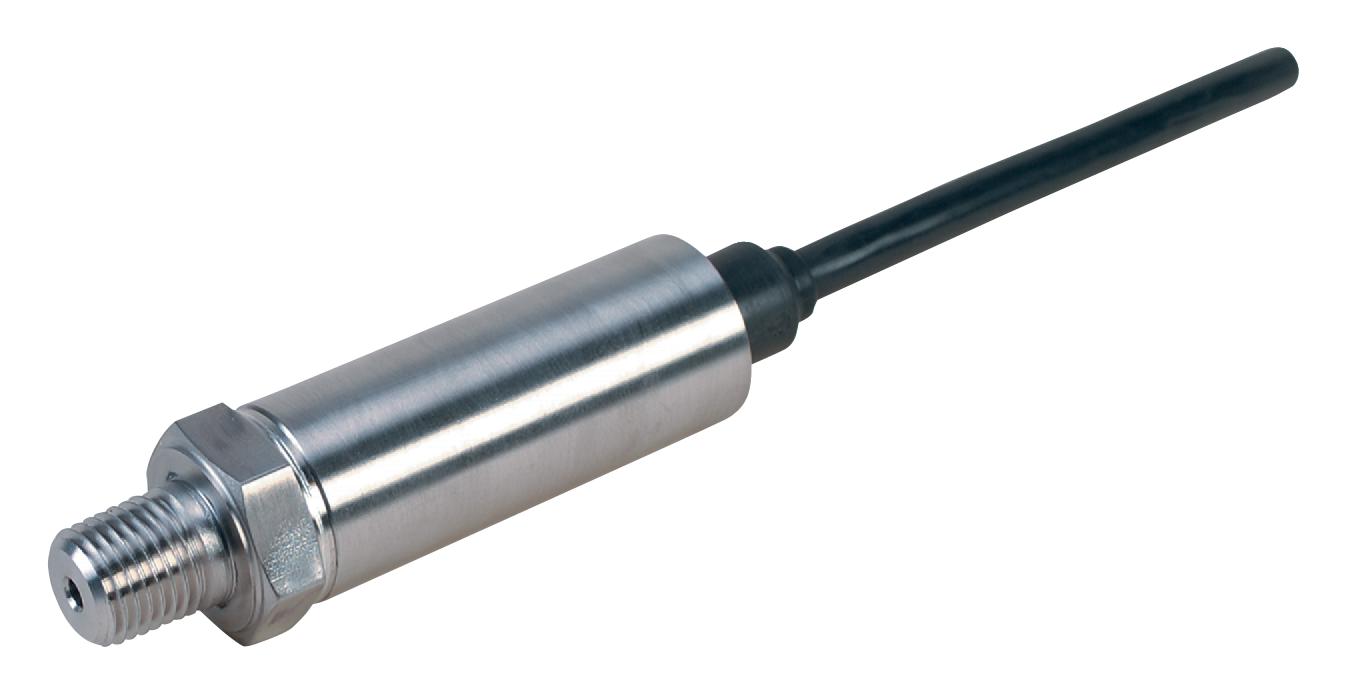

OMEGA PX409015VV Vacuum Transducer
The PX409 Series high accuracy vacuum transducer provides precise measurement of negative gage pressure with stainless steel wetted parts and welded construction. It covers ranges from -10 inH2O to -15 psi, featuring 0 to 10 mV/V, 0 to 5 Vdc, and 4 to 20 mA outputs. Suitable for industrial environments, it offers accuracy of +0.08% BSL, temperature compensation from -29 to 85°C, and rapid <1 ms response time, ensuring reliable, stable measurements in tough conditions.
OMEGA PX409015VV Vacuum Transducer Specifications:
- Output options: 0 to 10 mV/V, 0 to 5 Vdc, 4 to 20 mA
- Power supply: 5-10 Vdc for millivolt, 10-30 Vdc for voltage, 9-30 Vdc for current output
- Accuracy: +0.08% BSL max
- Zero balance: +0.5% FS typical
- Span setting: +0.5% FS typical
- Operating temperature: -45 to 121°C
- Compensated temperature: -29 to 85°C for ranges >5 psi, -17 to 85°C for ranges <5 psi
- Thermal zero effect: +0.5% span (>5 psi), +1.0% span (<5 psi)
- Long-term stability: +0.1% FS/year
- Vibration: 5-2000-5 Hz, 30 min cycle
- Shock: 50 g, 11 ms sine
- Response time: <1 ms
- Proof pressure: 10x full scale (positive), 4x (negative)
- Burst pressure: 1000 psi
- Environmental protection: IP67
- Wetted parts: stainless steel 316
- Pressure port: 1-18 NPT male
- Calibration: 5-point NIST traceable
- Weight: 115-200 g depending on configuration
Buy the Omega Series PX409 Vacuum Transducer: PX409015VV
Purchase the Omega Series PX409015VV vacuum transducer online now for accurate negative pressure measurement in industrial environments. This high-precision device offers 0 to -15 psi range with 0.08% accuracy, fast <1 ms response, and stainless steel wetted parts for durability. Its robust construction and temperature compensation from -29 to 85°C make it suitable for tough conditions. Ideal for process control, leak detection, and industrial automation, it comes with a 5-point NIST calibration and IP67 protection, guaranteeing dependable, long-term performance. Buy today for reliable pressure sensing.
Order your Omega Series PX409015VV vacuum transducer today and ensure precise, reliable pressure measurement for your industrial applications.
