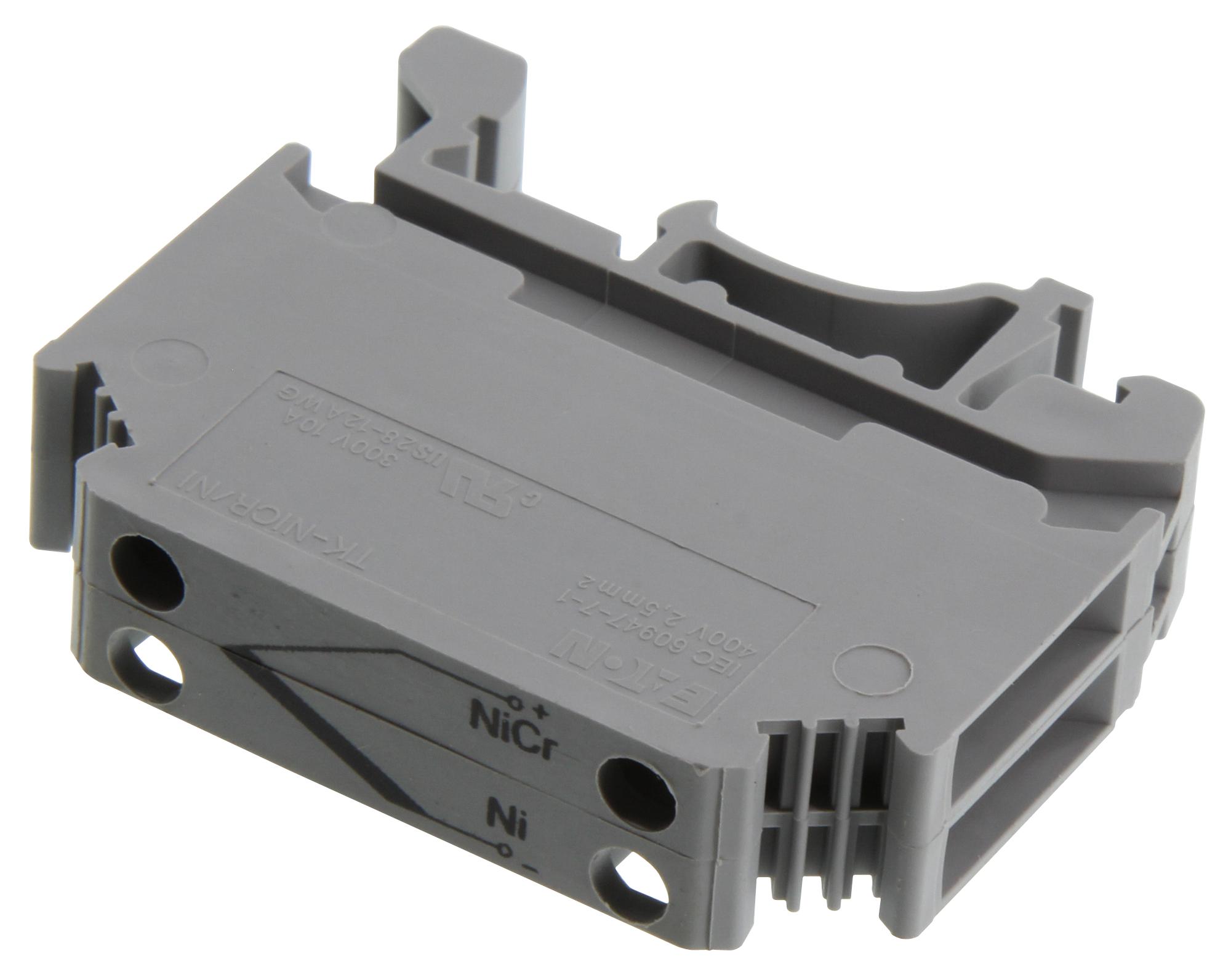

OMEGA XBTKK25 Thermocouple Terminal Block
Thermocouple terminal blocks in the XBTK series are designed for precise and maintenance-free connections of thermocouples such as Type J, K, T, E, and R. Made with thermocouple-grade alloys, these blocks feature screw-type DIN connectors and are suitable for various industrial temperature measurement applications. They have a terminal width of 10.4 mm and can accommodate wires up to 12 AWG. The insulated temperature range is -40°C to 125°C, with easy assembly and reliable electrical contact for accurate temperature sensing.
OMEGA XBTKK25 Thermocouple Terminal Block Specifications:
- Terminal Width: 10.4 mm (0.41")
- Maximum Wire Size: 12 AWG/2.5 mm²
- Connection Data in V/AWG: 400/24-12 Type K
- UL-cUL Ratings in V/A/AWG: 300/10/28-12
- Length: 46.0 mm (1.81")
- Cover Width: 1.0 mm (0.04")
- Height for 35 x 7.5/35 x 15: 40.0 mm (1.57") / 47.5 mm (1.87")
- Stripping Length: 7 mm (0.28")
- Thread: M3
- Torque: 0.6 to 0.8 inch-Ib (5.3 to 7.1 Nm)
- Insulated Temperature Range: -40°C to 125°C (-40°F to 257°F)
Buy the Buy Thermocouple Terminal Blocks Part Number XBTKK25 Online
Secure your temperature sensing needs by purchasing the thermocouple terminal block online. With easy installation, maintenance-free operation, and compatibility with Type J, K, T, E, and R thermocouples, this terminal block provides accurate and reliable connections. Ideal for industrial environments, it features a 10.4 mm wide contact area, accommodates wire sizes up to 12 AWG, and operates within a wide temperature range of -40°C to 125°C. Simplify your setups with this high-quality terminal connection solution today.
Buy Thermocouple Terminal Blocks XBTKK25 now and ensure reliable, accurate temperature measurement with maintenance-free connections in industrial environments.
Frequently Asked Questions
Where can I buy OMEGA XBTKK25?
You can click on the BUY or RFQ button to purchase XBTKK25 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part XBTKK25?
You can download the XBTKK25 datasheet or visit the OMEGA website for support.
Who is the manufacturer of XBTKK25?
OMEGA
