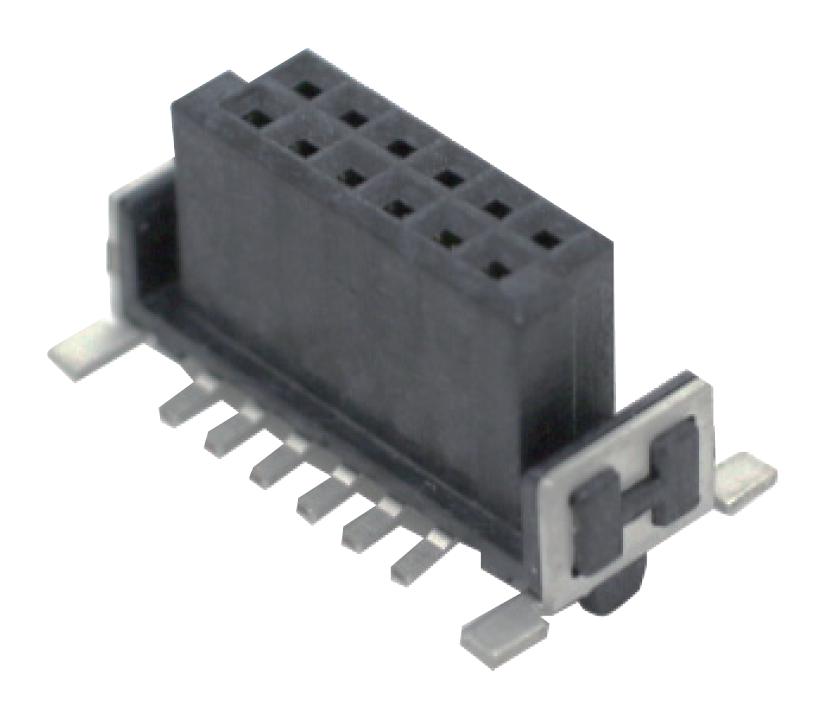

OMRON ELECTRONIC COMPONENTS XH5B12155N SMT Board Connector
The XH5 series is a versatile line of SMT board connectors with 1.27-mm pitch, suitable for surface-mount technology. They facilitate easy component mounting on circuit board surfaces, including stacking, vertical, and horizontal configurations. Designed for reflow mounting, these connectors feature various contact counts and mounting heights, offering flexible design options. They include through-hole reflow hold-down types and crimping sockets for simplified on-site assembly. Compliant with RoHS standards, these connectors support reliable electrical connections in compact, robust assemblies for industrial and electronic use.
OMRON ELECTRONIC COMPONENTS XH5B12155N SMT Board Connector Specifications:
- Pitch: 1.27 mm
- RoHS Compliant
- Material: LCP (UL94 V-0), PBT (UL94 V-0), Copper alloy/gold plated
- Rated current: 1A
- Rated voltage: 100 VAC
- Contact resistance: 20 mΩ max
- Insulation resistance: 1000 MΩ min at 100 VDC
- Dielectric strength: 500 VAC for 1 min
- Operating temperature: -20°C to +105°C
- Peak soldering temperature: 260°C for 20-40 seconds
- Maximum soldering time: 20-40 seconds
- Pin deformation caution: avoid excessive load handling
- Board mounting precautions: prevent warping, misalignment
- Cable connection: flat cables (AWG30), 0.635 mm pitch, with crimping tools
- Dimensions vary with model, typical length varies from 10 mm to 1000 mm depending on configuration
