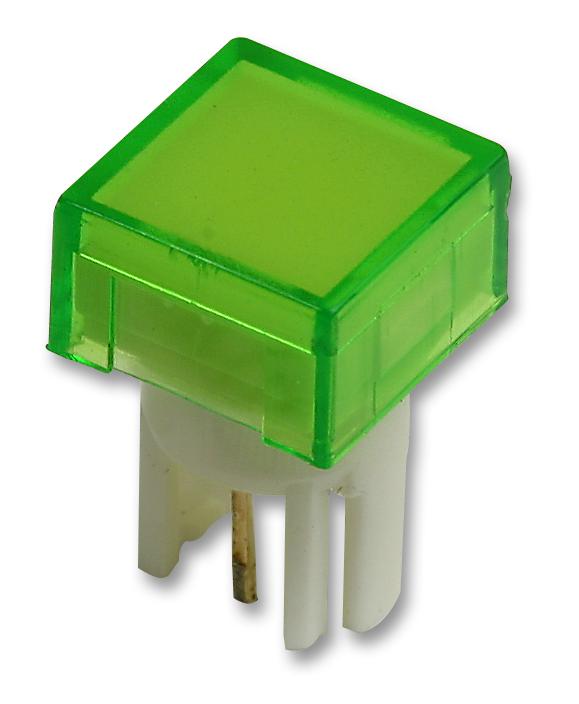

OMRON A3DA500GY Illuminated Pushbutton Switch
The illuminated pushbutton switch features a cylindrical body with a diameter of 8 mm, ideal for panel mounting in industrial control systems. It offers excellent surface brightness for clear illumination and easy mounting due to its cylindrical shape. With a microload rating of 0.1 A at 30 VDC and dual operation modes—momentary and alternate—it supports reliable switching. The switch's dimensions and mounting details are designed for straightforward installation, making it suitable for automation, machinery, and control panels requiring illuminated pushbutton functionality with high visibility and dependable operation.
OMRON A3DA500GY Illuminated Pushbutton Switch Specifications:
- Shape: Cylindrical 8 mm diameter
- Illumination: LED built-in, bright surface brightness
- Contact Rating: 30 VDC, 0.1 A
- Operating Force: Max 245 N
- Release Force: Min 0.196 N
- Total Travel: Approx. 3.5 mm
- Switch Type: SPST-NO, momentary and alternate operation modes
- LED Polarity: Marked on back, connect respecting polarity
- Operating Temperature: 10°C to +55°C
- Degree of Protection: IEC IP40
- Weight: Approx. 3 g
- Material: Metal and plastic components
- Mounting: Panel thickness 1.0 to 3.2 mm, tightening torque 0.20 to 0.29 N·m
- Certification: RoHS Compliant
- Wiring: Solder terminals with external resistor required for LED
Buy the OMRON A3DA500GY – Reliable Illumination Pushbutton for Industrial Applications
Enhance your control systems with this compact, cylindrical lighted pushbutton switch featuring bright LED illumination and reliable contact ratings. Designed for panel mounting, it offers easy installation with a mounting nut suitable for panel thickness from 1.0 to 3.2 mm. The switch supports both momentary and alternate operations, making it versatile for industrial automation, machinery, and control panels. With a total travel of approximately 3.5 mm, and a contact rating of 30 VDC at 0.1 A, it ensures dependable operation and excellent visibility in demanding environments.
Order your OMROM Series A3DA500GY illuminated pushbutton today and give your control panels the dependable bright illumination they deserve.
Frequently Asked Questions
Where can I buy OMRON A3DA500GY?
You can click on the BUY or RFQ button to purchase A3DA500GY from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part A3DA500GY?
You can download the A3DA500GY datasheet or visit the OMRON website for support.
Who is the manufacturer of A3DA500GY?
OMRON
