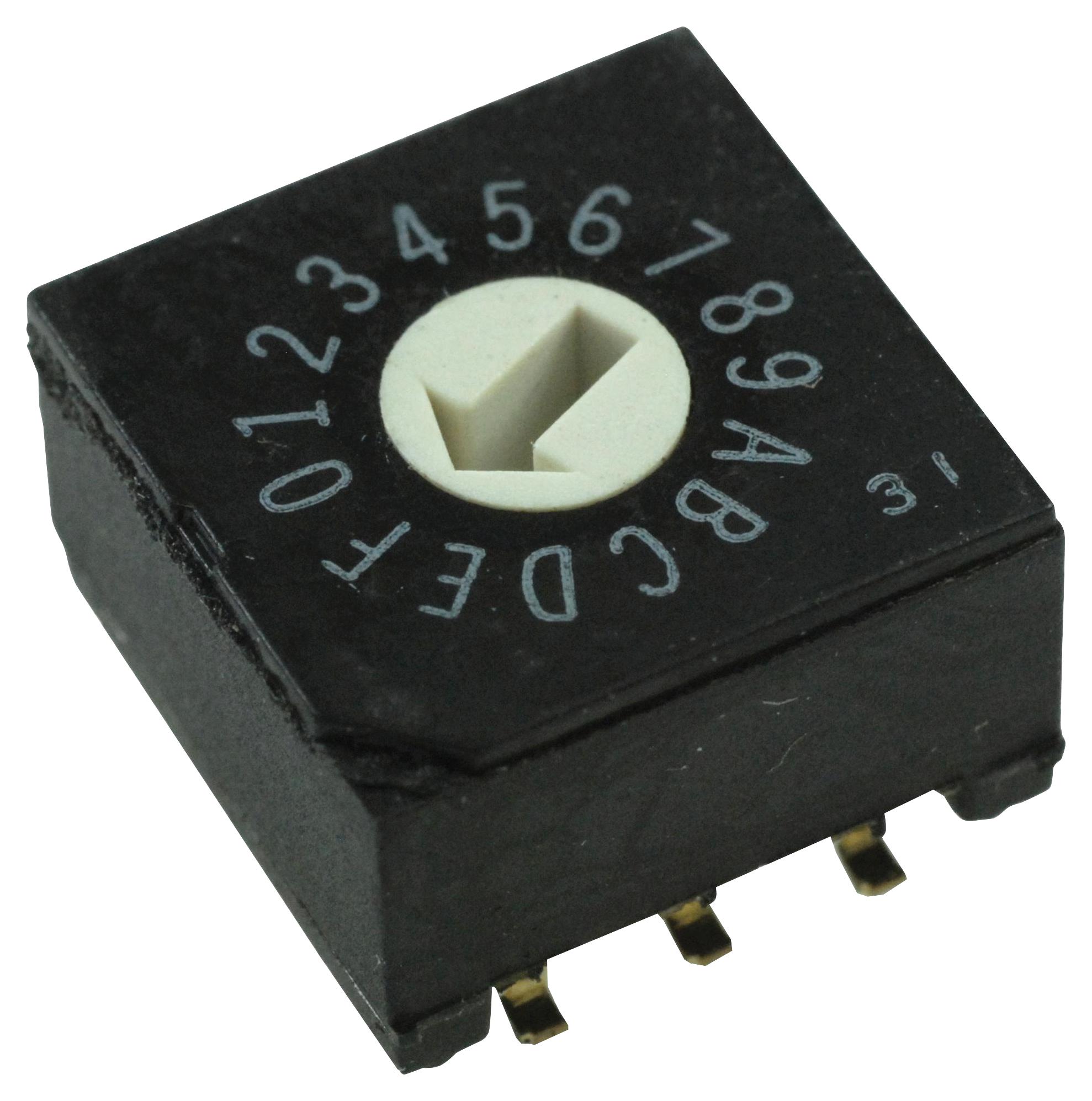

OMRON A6RS161RFP Rotary Dip Switch
This high-performance surface-mount rotary DIP switch offers reliable switching with multiple positions, ideal for configuring electronic circuits. Designed to withstand peak reflow temperatures of 260°C, it features various terminal arrangements for flexible circuit integration. Available in flat and extended-shaft models, the switch adheres to RoHS standards and provides a rated current of 25 mA at 24 VDC. Its compact design ensures ease of installation in space-constrained environments, making it suitable for diverse industrial and electronics applications requiring precise manual control and circuit configuration.
OMRON A6RS161RFP Rotary Dip Switch Specifications:
- Rating: 25 mA at 24 VDC
- Ambient operating temperature: -25 to 80°C with no icing or condensation
- Insulation resistance: 100 MΩ min. at 250 VDC
- Contact resistance: Max. 200 mΩ (initial)
- Dielectric strength: 250 VAC for 1 minute between terminals of same polarity
- Vibration resistance: 10 to 55 Hz, 1.5-mm double amplitude
- Shock resistance: Malfunction around 300 m/s²
- Electrical life expectancy: 5,000 steps min.
- Operating torque: Max. 1.96 x 10⁻² N·m
- Weight: 4x1, top-actuated 0.64 g; 3x3, top-actuated 0.62 g (add 0.13 g for extended-shaft)
- Dimensions: see detailed PCB cutout and size specifications
- Temperature-resistant resin allows use in peak reflow temperatures of 260°C
- RoHS compliant, different terminal arrangements available for circuit flexibility
- Models include flat and extended-shaft designs, with tube and embossed tape packaging options
Buy the Omron Series A6RS Rotary DIP Switch: A6RS161RFP
Purchase the Omron Series A6RS Rotary DIP Switch online now to experience dependable manual circuit configuration. The switch features multiple positions, RoHS compliance, and peak reflow temperature resistance, making it suitable for various industrial applications. With flat and extended-shaft options, it provides flexible installation and easy operation in space-constrained environments. Durable and rated for 25 mA at 24 VDC, this switch ensures reliable performance in electronic systems. Buy online today and enhance your project with trusted, high-quality components.
Order your Omron Series A6RS rotary DIP switch today and ensure precise circuit configuration with reliable, RoHS-compliant manual control solutions.
