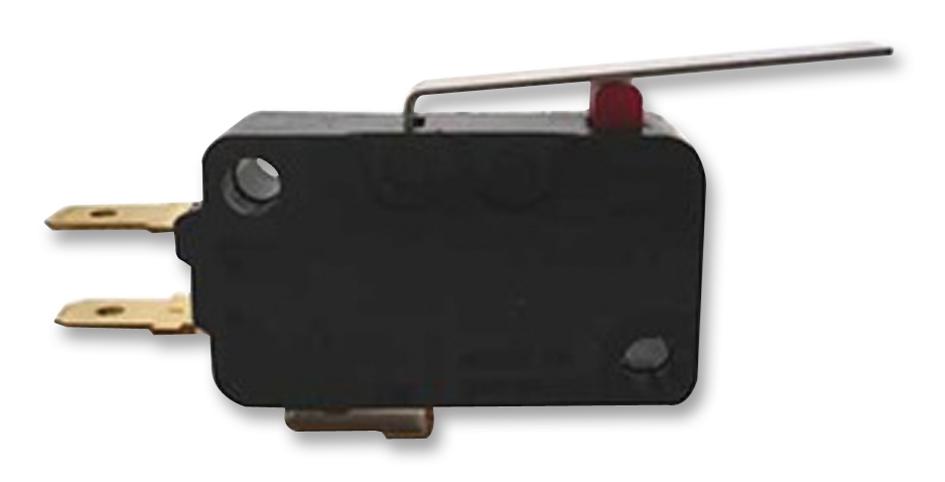

OMRON D3V0131C23BYOMI Micro Switch
The D3V Miniature Basic Switch offers reliable switching with self-cleaning contacts and versatile actuator options including pin, hinge, and roller levers. Suitable for micro and high loads, it features different contact configurations such as SPDT, SPST-NC, and SPST-NO, with ratings up to 21A at 250VAC. Its compact design supports quick-connect or solder terminals, with insulation and mounting options tailored for precise applications. Ideal for control systems requiring durability, high responsiveness, and corrosion resistance, it conforms with RoHS standards and international safety standards.
OMRON D3V0131C23BYOMI Micro Switch Specifications:
- Contact Ratings: 21A at 250VAC, 16A at 250VAC, 11A at 250VAC, 6A at 250VAC, 0.1A at 125VAC
- Contact Form: SPDT, SPST-NC, SPST-NO
- Terminals: Solder, quick-connect (#187, #250)
- Contact Gap: 1 mm (F gap), 0.5 mm (G gap)
- Actuators: Pin plunger, short hinge, hinge, long hinge, roller lever
- Maximum Operating Force: 0.49 N to 1.96 N depending on model
- Insulation Distance: Minimum 1.1 mm insulation thickness, 1.9 mm clearance
- Mounting Hole Diameter: 3.1 mm or 2.9 mm with optional K suffix
- Operating Speed: 0.1 mm to 1 m/s
- Operating Temperature: -25°C to +105°C
- Durability: Up to 10 million operations
- Standards: RoHS, UL, CSA, EN 61058-1
- Weight: Approximately 6.2 g (pin plunger models)
Buy the DEA Series Basic Switch: D3V0131C23BYOMI
Order the DEA Series Micro Switch D3V0131C23BYOMI online today for applications demanding reliable contact switching, high load capacity, and versatile actuator options. This compact, RoHS-compliant switch features self-cleaning contacts, quick-connect or solder terminals, and a durable design capable of handling thousands of operations. Perfect for control panels, automation, and safety systems, it ensures optimal performance with high resistance to wear and environmental conditions. Secure your supply chain by purchasing this dependable switch online now.
Get DEA Series Basic Switch D3V0131C23BYOMI today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy OMRON D3V0131C23BYOMI?
You can click on the BUY or RFQ button to purchase D3V0131C23BYOMI from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part D3V0131C23BYOMI?
You can download the D3V0131C23BYOMI datasheet or visit the OMRON website for support.
Who is the manufacturer of D3V0131C23BYOMI?
OMRON
