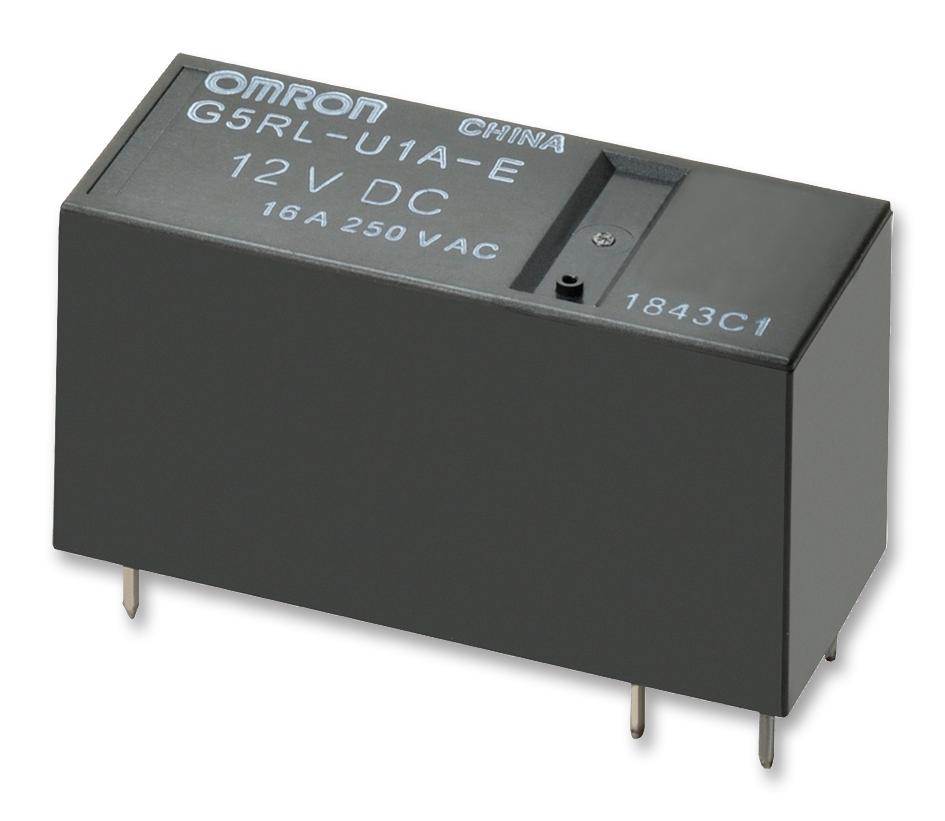

OMRON G5RLU1AEDC12 Power Relay
The G5RL-U and K PCB Power Relays are high-capacity, general-purpose relays suitable for industrial automation, building equipment, UPS, and power meters. They offer high switching current up to 16 A at 250 VAC and feature both single-winding and double-winding latching options. Designed with 8 mm creepage distance and 10 kV impulse withstand voltage, these relays operate reliably within an ambient temperature range of -40°C to 85°C. They are RoHS compliant, include contact material made of Ag alloy, and support various coil voltages for flexible compatibility.
OMRON G5RLU1AEDC12 Power Relay Specifications:
- Contact form: SPST-NO (1a), SPDT (1c)
- Max switching voltage: 250 VAC, 24 VDC
- Rated current: 16 A at 250 VAC, 5 A at 24 VDC
- Contact material: Ag alloy (Cd free)
- Coil voltages: 3 VDC, 5 VDC, 6 VDC, 12 VDC, 24 VDC
- Coil power consumption: approx. 0.6 W to 0.84 W depending on voltage
- Insulation resistance: 7,000 MΩ min. at 500 VDC
- Dielectric strength: +499 VAC between contacts, 10 kV impulse withstand between coil and contacts
- Operate time: 15 ms max., Reset time: 15 ms max.
- Operational temperature: -40°C to 85°C with no icing or condensation
- Number of operations: 50,000 electrical, 5,000,000 mechanical
- Dimensions: approximately 28.8 mm x 29 mm for mounting, weight approx. 109 g
- Standards: UL Recognized, CSA Certified, VDE Certified
Buy the Buy Omron G5RLU1AEDC12 Power Relay Part Number G5RLU1AEDC12 Online
Purchase the Omron G5RL-U- K PCB Power Relay online today to ensure your automation projects have high-capacity, reliable switching performance. This relay supports up to 16 A at 250 VAC and offers a stable, durable design suitable for various industrial applications. With a broad temperature range, RoHS compliance, and contact materials that ensure consistent operation, you can confidently integrate these relays into your system. Simplify your procurement process by ordering online and secure a dependable component for your automation and building control systems.
Order your Omron G5RL-U- K PCB Power Relay today and enhance the reliability of your industrial automation and building systems with high switching capacity.
Frequently Asked Questions
Where can I buy OMRON G5RLU1AEDC12?
You can click on the BUY or RFQ button to purchase G5RLU1AEDC12 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G5RLU1AEDC12?
You can download the G5RLU1AEDC12 datasheet or visit the OMRON website for support.
Who is the manufacturer of G5RLU1AEDC12?
OMRON
