OMRON G5RLU1EDC3 PCB Power Relay
The G5RL-U/-K is a high-capacity PCB power relay capable of switching 16 A at 250 VAC and 5 A at 24 VDC. Available in single and double-winding latching forms, it features an SPST-NO (1a) or SPDT (1c) contact configuration, with robust Ag alloy contacts free of cadmium. Designed for applications like housing equipment, building automation, UPS systems, and power meters, it offers high dielectric strength, impulse withstand voltage of 10 kV, and an ambient operating temperature of 85°C, ensuring reliable performance in demanding environments.
OMRON G5RLU1EDC3 PCB Power Relay Specifications:
- Contact form: SPST-NO (1a) or SPDT (1c)
- Contact material: Ag Alloy (Cd free)
- Rated current: 16 A at 250 VAC, 5 A at 24 VDC
- Impulse withstand voltage: 10 kV
- Creepage distance: 8 mm between coil and contacts
- Ambient operating temperature: 85°C
- Coil voltage: 3 VDC, 5 VDC, 6 VDC, 12 VDC, 24 VDC
- Rated coil current: 150-960 mA depending on coil voltage
- Mounting: PCB terminal
- Durability: 50,000 electrical operations
- Insulation resistance: ≥7,000 MΩ at 500 VDC
- Dielectric strength: 500 VAC between coil and contacts
- Weight: approximately 109 grams
- Dimensions: Typical height 29.0 mm, width 12.7 mm, depth 15.7 mm
- Standards: UL Recognized, CSA Certified, VDE Certified

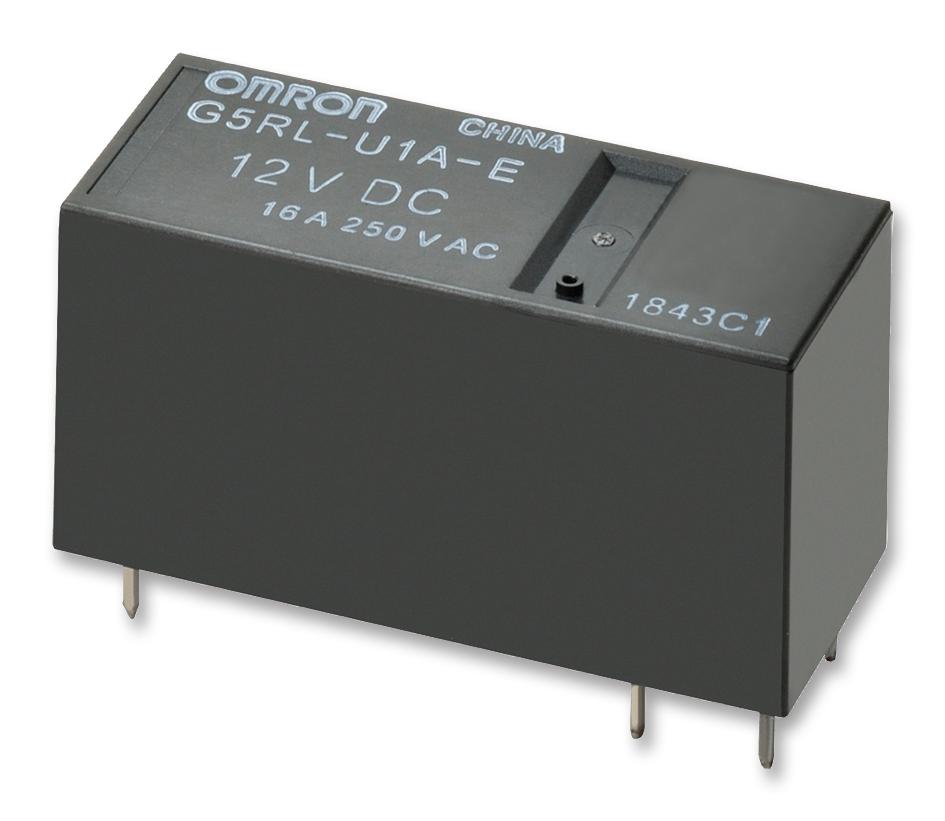

Buy the OMRON Series G5RL High-Capacity PCB Power Relay: G5RL-U1A-E
Purchase the OMRON G5RL-U1A-E PCB relay online today to enjoy high switching capacity, durable construction, and reliable operation in industrial control systems. This relay supports switching up to 16 A at 250 VAC and 5 A at 24 VDC, with robust Ag alloy contacts and safety features such as a creepage distance of 8 mm. Ideal for automation, building controls, and power meter applications, it offers dependable performance, high dielectric strength, impulse withstand voltage, and certified standards. Shop now for quick delivery and trusted quality.
Buy OMRON G5RL-U1A-E high-capacity PCB power relay now and experience unmatched reliability and performance for industrial automation.
Frequently Asked Questions
Where can I buy OMRON G5RLU1EDC3?
You can click on the BUY or RFQ button to purchase G5RLU1EDC3 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part G5RLU1EDC3?
You can download the G5RLU1EDC3 datasheet or visit the OMRON website for support.
Who is the manufacturer of G5RLU1EDC3?
OMRON
