OMRON XF3M118151BR100 Rotary FPC Connector
The Rotary Backlock Connector offers a reliable connection solution for FPC/FFC cables with a 0.5-mm or 1.0-mm pitch. Designed for improved insertion and confirmed locking feel, it features dual-sided or upper-sided contacts, gold or tin plating options, and supports FPC/FFC thickness of 0.3 mm. Ideal for applications requiring high durability, RoHS compliance, and halogen-free construction, these connectors provide rated current of 0.5 A and rated voltage of 50 V, with minimal contact resistance, insulator resistance of 100 MQ min., and dielectric strength of 250V AC for 1 min.
OMRON XF3M118151BR100 Rotary FPC Connector Specifications:
- Pitch: 0.5 mm or 1.0 mm
- Rated current: 0.5 A AC/DC
- Rated voltage: 50 V AC/DC
- Contact resistance: 50 mΩ max. (at 20 mV DC, 100 mA max.)
- Insulation resistance: 100 MQ min. (at 250 V DC)
- Dielectric strength: 250 V AC for 1 min.
- Housing material: LCP resin (UL94 V-0)
- Contact plating: Gold-plated or Tin-plated
- Applicable FPC/FFC thickness: 0.3 mm
- Halogen Free: Standard (900 ppm max. for Br and Cl, 1500 ppm max. for Br+Cl)
- RoHS compliant
- Insertion durability: Gold-plated contacts 20 times, Tin-plated contacts 10 times
- Operating temperature: 30°C to 85°C

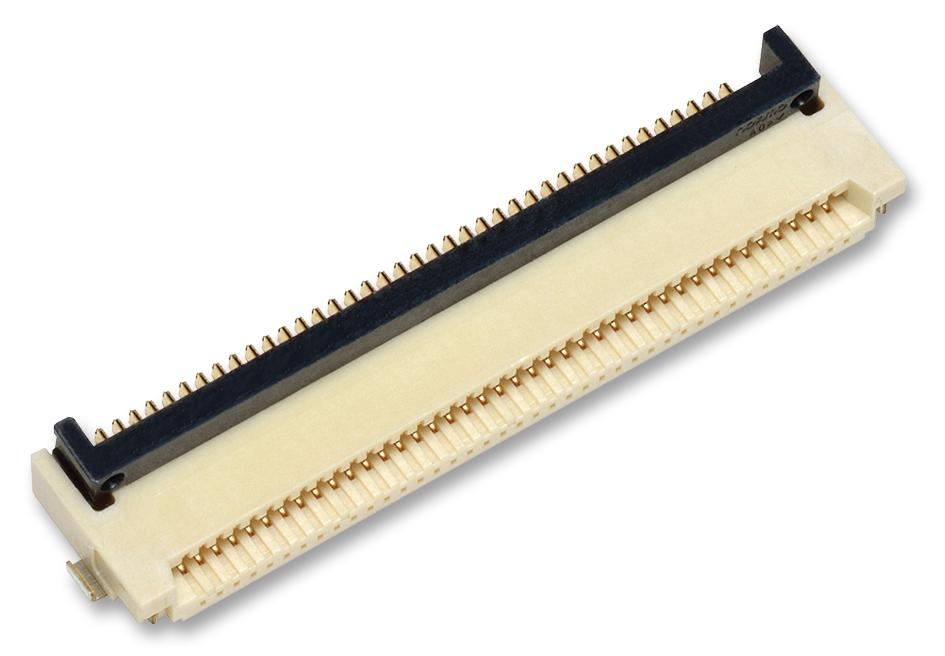

Buy the Omron Series XF3M Rotary Backlock Connector: XF3M118151BR100
Experience superior connection performance with the Omron Rotary FPC Connector. Designed for reliable insertion and locking of flexible cables, it supports a variety of pitches and contact configurations. Suitable for industrial and electronics applications, it features excellent durability, RoHS compliance, and halogen-free construction. Order online now to secure a dependable, high-quality connector that ensures optimal electrical performance and easy installation in your projects. Enhance your assembly with this precision component today.
Get Omron XF3M118151BR100 today—built for precision and long-lasting durability in high-reliability electronic connections.
Frequently Asked Questions
Where can I buy OMRON XF3M118151BR100?
You can click on the BUY or RFQ button to purchase XF3M118151BR100 from an authorized OMRON distributor.
How do I troubleshoot issues or seek technical support for part XF3M118151BR100?
You can download the XF3M118151BR100 datasheet or visit the OMRON website for support.
Who is the manufacturer of XF3M118151BR100?
OMRON
