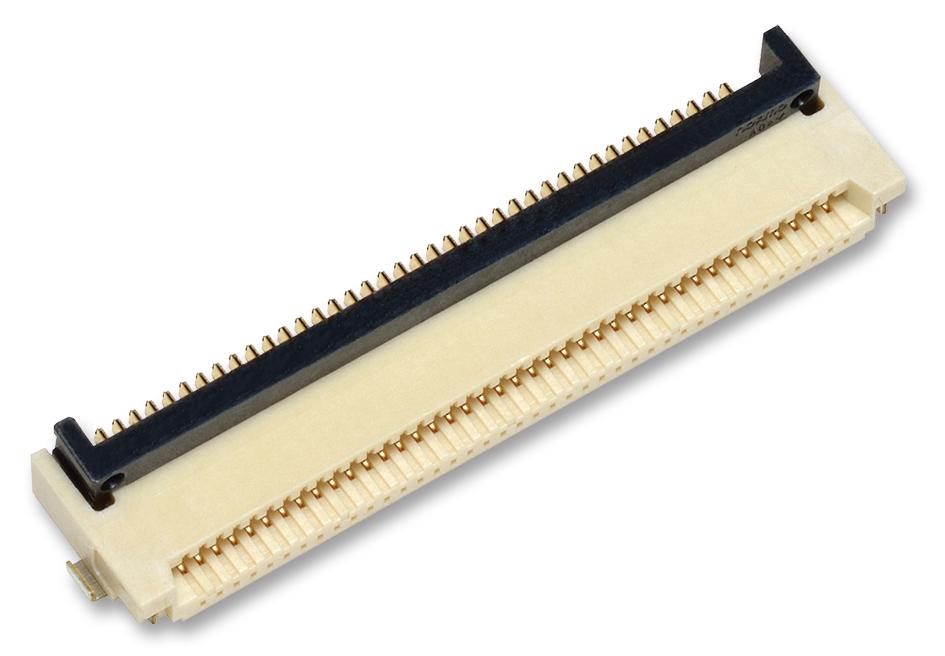

OMRON XF3M12151BR100 FPC/FFC Connector
The XF3M Rotary Backlock Connectors are designed for secure FPC/FFC cable connections with improved insertion and confirmation features. Available in 0.5-mm and 1.0-mm pitch options, these connectors feature dual-sided or upper-sided contacts—only upper-sided models come with 0.5-mm pitch. They are gold or tin-plated, support 80 pins, and are suitable for FPC/FFC thickness of 0.3 mm. These halogen-free, RoHS-compliant connectors are ideal for reliable electronic assembly with durable contact resistance and dielectric strength.
OMRON XF3M12151BR100 FPC/FFC Connector Specifications:
- Pitch options: 0.5 mm or 1.0 mm
- Contact materials: gold-plated or tin-plated
- Number of pins: 80 (model specific)
- Supported FPC/FFC thickness: 0.3 mm
- Rated current: 0.5 A AC/DC
- Rated voltage: 50 V AC/DC
- Contact resistance: 50 mΩ max.
- Insulation resistance: 100 MΩ min.
- Dielectric strength: 250 V AC for 1 min.
- Housing material: LCP resin (UL94 V-0)
- Operating temperature: 30 to 85°C
- Halogen-free and RoHS compliant
- Available in dual-sided and upper-sided contact models
- High durability: gold-plated contacts for 20 insertion cycles, tin-plated for 10 cycles
- Reel quantities: 100 or 1500 pcs per reel
Buy the OMRON Series XF3M FPC/FFC Connector: XF3M12151BR100
Order the OMRON XF3M12151BR100 FPC/FFC connector online today. This high-quality connector features 0.5-mm pitch with dual-sided contacts, gold-plated for longevity, halogen-free, RoHS compliant, and supports 80 pins with reliable insertion and connection. Ideal for electronics requiring secure and durable flexible circuit connections, these connectors come pre-reeled for quick, efficient assembly, ensuring consistent quality and performance in your manufacturing process. Trust OMRON for top-tier electronic components designed for long-term reliability.
Buy OMRON XF3M12151BR100 now and experience unmatched reliability and performance in secure FPC and FFC connections with durable contact plating and RoHS compliance.
