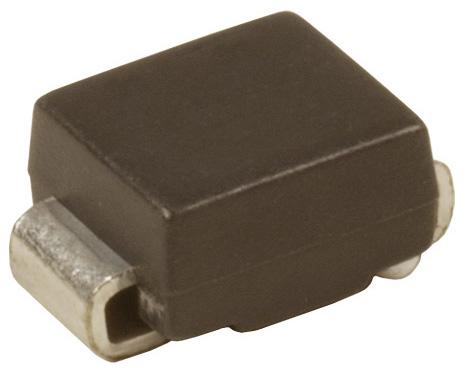

ONSEMI 1SMA5920BT3G Voltage Regulator Diode
The 1SMA5920BT3 series surface mount Zener diode features a corrosion-resistant, transfer-moulded plastic case, providing reliable performance in industrial applications. It has a Zener breakdown voltage from 5.89V to 68V, with an ESD rating of Class 3 (>16kV) per human body model. The low-profile, flat handling surface allows accurate placement, and the package supports top slide or bottom circuit board mounting. These Pb-Free devices are ideal for voltage regulation, offering easy solderability and replacement for MELF packages. Suitable for industrial and automotive uses, with lead-free options available.
ONSEMI 1SMA5920BT3G Voltage Regulator Diode Specifications:
- Package: Transfer-moulded plastic, low profile
- Zener Voltage Range: 3.3 V to 68 V
- ESD Rating: Class 3 (> 16 kV) Human Body Model
- Polarity: Cathode indicated by molded notch or band
- Soldering Temperature: Max 260°C for 10 seconds
- Maximum Power Dissipation: 15 W at 75°C
- Thermal Resistance: Junction to lead 50°C/W, Junction to ambient 250°C/W
- Operating Temperature Range: -65°C to +150°C
- Device Type: Pb-Free, RoHS Compliant
- Mechanical: Void-free, transfer-molded plastic case
- Mounting: Supports top slide or bottom PCB mounting
- Finish: Corrosion-resistant external surfaces
- Maximum case temperature for soldering: 260°C for 10 seconds
- Certifications: UL 94 V-0 flammability rating
- Leads: Readily solderable
Buy the Buy ON Semiconductor Zener Voltage Regulator Part Number 1SMA5920BT3G Online
Purchase ON Semiconductor 1SMA5920BT3G online today and enhance your voltage regulation projects with a high-performance, surface mount Zener diode. Featuring a Zener voltage range from 5.89V to 68V, this diode offers excellent ESD protection of over 16kV, ensuring robustness in industrial and automotive applications. The device’s corrosion-resistant, transfer-moulded plastic case guarantees durability, while its low-profile, flat handling surface facilitates accurate placement. Compatible with top slide or bottom PCB mounting, these Pb-Free, RoHS compliant diodes are ideal replacements for MELF packages, providing reliable voltage stabilization for demanding environments.
Get ON Semiconductor 1SMA5920BT3G today—built for precise voltage regulation with high ESD immunity and reliable surface mount design.
Frequently Asked Questions
Where can I buy ONSEMI 1SMA5920BT3G?
You can click on the BUY or RFQ button to purchase 1SMA5920BT3G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 1SMA5920BT3G?
You can download the 1SMA5920BT3G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 1SMA5920BT3G?
ONSEMI
