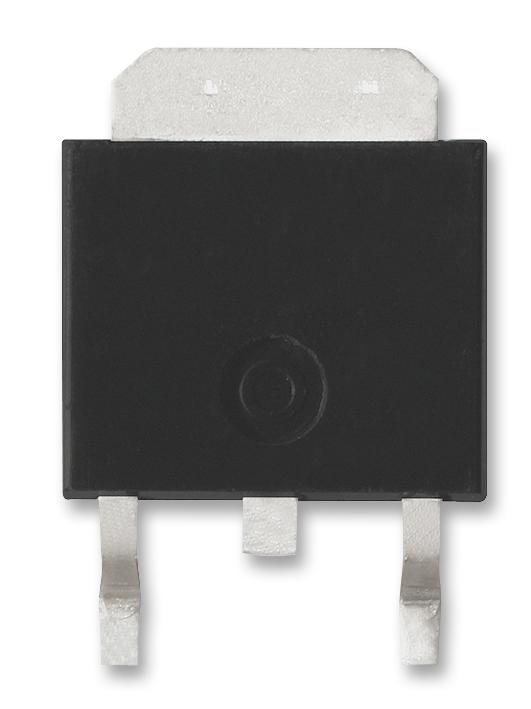

ONSEMI 2SD1802TTLE Bipolar Transistor
The 2SD1802T is a high-performance NPN bipolar junction transistor designed for use in voltage regulation, relay driving, lamp driving, and electrical equipment. Utilizing advanced FBET and MBIT process technologies, it features a large current capacity and wide collector-base safety margin. Its low collector to emitter saturation voltage and fast switching times make it suitable for compact circuit design. Packaged in a slim, easy-to-mount TO-252 package, it provides reliable, efficient operation in various electronic applications, ensuring durability and consistent performance.
ONSEMI 2SD1802TTLE Bipolar Transistor Specifications:
- Package: TO-252, SOT-428
- Maximum Collector to Base Voltage: 60 V
- Maximum Collector to Emitter Voltage: 50 V
- Maximum Emitter to Base Voltage: 6 V
- Maximum Collector Current: 8 A
- Pulse Collector Current: 16 A
- DC Current Gain: 35 (min)
- Gain-Bandwidth Product: 150 MHz
- Output Capacitance: 3.93 pF
- Collector to Emitter Saturation Voltage: 0.19 V
- Base to Emitter Saturation Voltage: 0.40 V
- Collector to Base Breakdown Voltage: 60 V
- Collector to Emitter Breakdown Voltage: 50 V
- Emitter to Base Breakdown Voltage: 6 V
- Transition Time: 70 ns (turn-on), 35 ns (fall time)
- Storage Temperature Range: -55°C to +150°C
- Junction Temperature: 150°C
- Dissipation: 0.01 W
- Ambient Temperature Range: -55°C to +150°C
Buy the Buy ON Semiconductor Bipolar Transistor Part Number 2SD1802TTLE Online
Enhance your electronic device with the high-quality 2SD1802T bipolar transistor. It is ideal for voltage regulation, relay and lamp driving, and electrical equipment. Featuring advanced FBET and MBIT process technologies, it offers large current capacity, low saturation voltage, and fast switching times. Packaged in a slim TO-252 form factor, this transistor ensures compact, durable, and reliable performance for various electronic projects and industrial applications. Purchase online today to benefit from excellent efficiency and dependability.
Buy ON Semiconductor 2SD1802TTLE now and experience unmatched reliability and performance in power switching and amplification applications.
Frequently Asked Questions
Where can I buy ONSEMI 2SD1802TTLE?
You can click on the BUY or RFQ button to purchase 2SD1802TTLE from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 2SD1802TTLE?
You can download the 2SD1802TTLE datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 2SD1802TTLE?
ONSEMI
