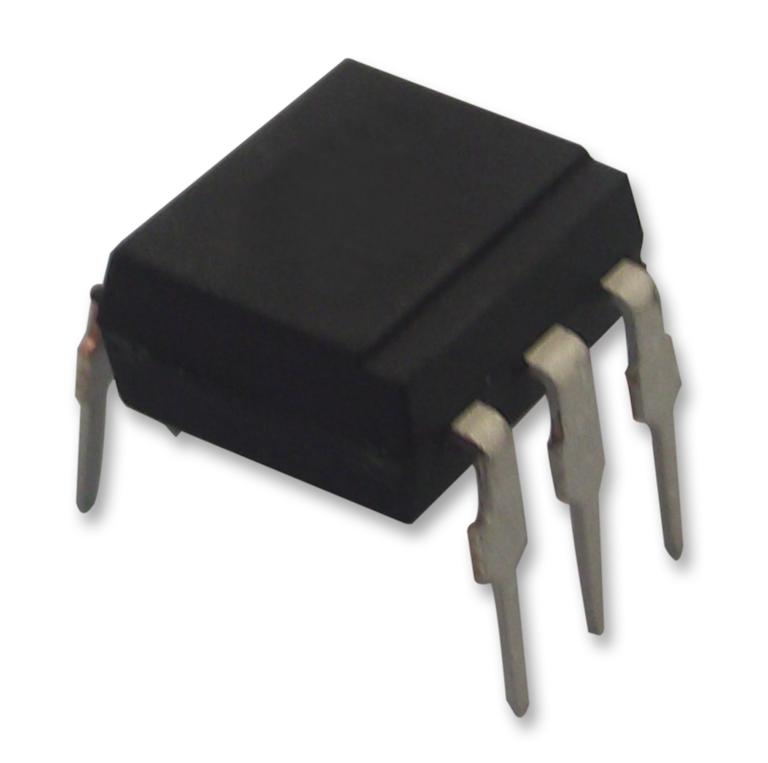

ONSEMI 4N35VM Optocoupler
The 4N35VM is a high-quality general-purpose optocoupler featuring a gallium arsenide infrared emitter and a silicon phototransistor in a compact 6-pin DIP package. Designed for electrical isolation, it offers a maximum working insulation voltage of 850 Vpeak, making it ideal for power supply regulation, digital logic, and microprocessor interfaces. Its robust construction ensures safety, regulatory compliance, and reliable performance in harsh industrial environments, with a typical current transfer ratio up to 100%. This optocoupler is suitable for applications requiring safe electrical separation and signal isolation with minimal interference.
ONSEMI 4N35VM Optocoupler Specifications:
- Package Type: DIP 6-Pin, 8.51x6.35 mm
- Material: Gallium arsenide infrared emitter, silicon phototransistor
- Maximum Insulation Voltage: 850 Vpeak
- Isolation Resistance: >109 Ω at 500 V
- External Creepage & Clearance: 27 mm
- Lead Solder Temperature: 260°C for 10 seconds
- Storage Temperature: -40°C to +125°C
- Operating Temperature: -40°C to +100°C
- Collector-to-Emitter Voltage: 30 V
- Collector-to-Base Voltage: 70 V
- Emitter-to-Collector Voltage: 7 V
- Collector Power Dissipation: 150 mW
- Input Forward Voltage (at 10 mA): 1.18 V typ.
- CTR (Current Transfer Ratio): up to 100% at 10 mA input current
- Response Time: Typical turn-on/off times ~2 μs
- Regulatory Compliance: UL1577, IEC60747-5-5
- Mounting Style: Through Hole (DIP)
- Case Dimensions: 8.51 x 6.35 mm, standard DIP footprint
Buy the ONSEMIL 4N35VM – Reliable Electrical Isolation for Industrial Applications
Purchase the ONSEMIL 4N35VM optocoupler online today and ensure safe electrical isolation in your industrial or electronic projects. Designed for power supply regulation, digital logic, and microprocessor applications, this high-insulation component offers a maximum working voltage of 850Vpeak, making it suitable for harsh environments. Its robust 6-pin DIP package guarantees easy mounting and long-term reliability. With excellent regulatory approvals and high CTR, this optocoupler is perfect for engineers seeking durable and compliant isolation solutions for complex electronic systems.
Buy ONSEMIL 4N35VM now and experience unmatched reliability and performance in electrical isolation and signal separation for industrial applications.
Frequently Asked Questions
Where can I buy ONSEMI 4N35VM?
You can click on the BUY or RFQ button to purchase 4N35VM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 4N35VM?
You can download the 4N35VM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 4N35VM?
ONSEMI
