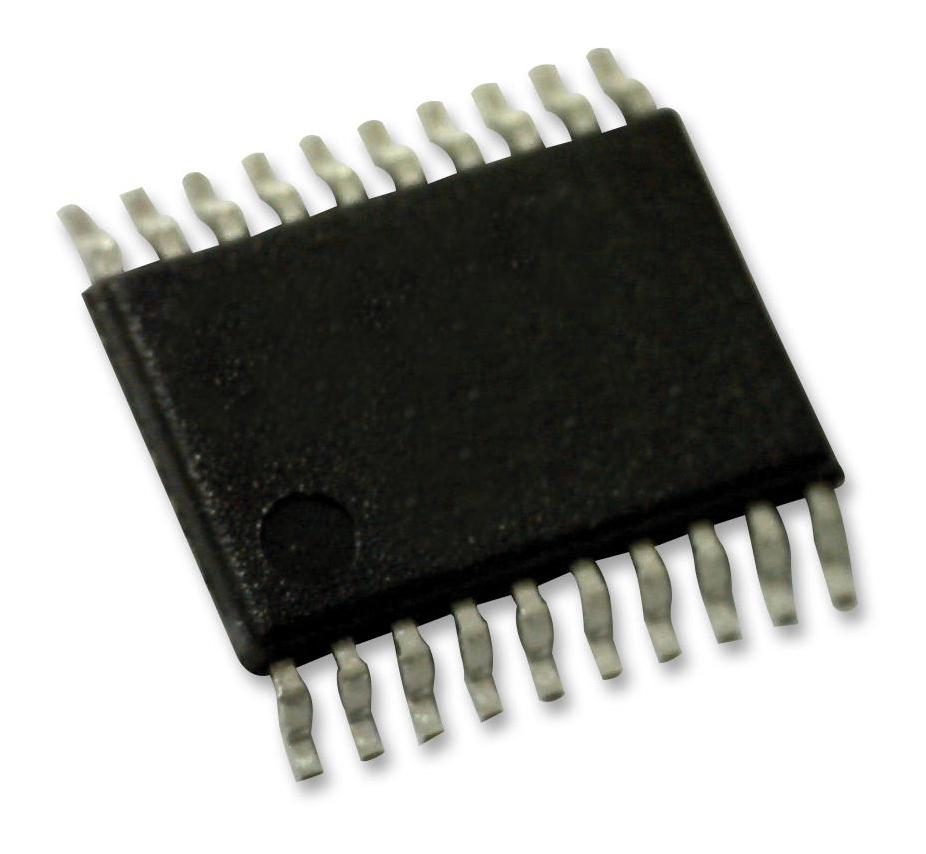

ONSEMI 74LVTH244MTCX Octal Buffer Line Driver
The 74LVTH244 is a low-voltage octal buffer and line driver designed for 3.3V applications with TTL interface compatibility to 5V systems. It features bushold data inputs, eliminating external pull-up resistors for unused inputs, and allows live insertion/extraction with glitch-free power-up/down high impedance. Suitable as memory address drivers, clock drivers, and bus transmitters, it provides high-speed operation, source/sink current of -32mA/+64mA, and robust ESD performance. Available in several packages, it ensures reliability and efficient high-density PCB design for industrial and electronic control applications.
ONSEMI 74LVTH244MTCX Octal Buffer Line Driver Specifications:
- Supply Voltage: -0.5V to +4.6V
- Input Voltage: 0V to 5.5V
- DC Output Voltage: -0.5V to +7.0V
- Output Current in HIGH State: -32mA
- Output Current in LOW State: +64mA
- Power Supply Current: 64mA maximum per supply pin
- Storage Temperature: -65°C to +150°C
- Propagation Delay: 1.1 ns to 4.4 ns
- Input Capacitance: 3 pF
- Output Capacitance: 6 pF
- Operating Temperature: -40°C to 85°C
- ESD Tolerance: >2000V human-body model, >1000V charged-device model
- Package Types: SOIC, SOP, SSOP, TSSOP
- Lead-Free Package Conformance: JEDEC J-STD-020B
Buy the Fairchild 74LVTH244 MTCX – Reliable Buffer for Industrial Applications
Purchase the reliable 74LVTH244 octal buffer and line driver online to ensure high-speed, low-power performance for industrial and electronic control systems. Its bushold inputs eliminate external resistors for unused inputs, simplifying PCB design. With multiple package options, including SOIC, SOP, SSOP, and TSSOP, it guarantees compatibility with various board layouts. Designed for 3.3V and 5V systems, it offers robust ESD protection and high current sourcing/sinking capability, making it an essential component for memory address drivers, clock drivers, and bus transmitters in modern electronic applications.
Get Fairchild 74LVTH244 MTCX today—built for precision and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy ONSEMI 74LVTH244MTCX?
You can click on the BUY or RFQ button to purchase 74LVTH244MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74LVTH244MTCX?
You can download the 74LVTH244MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74LVTH244MTCX?
ONSEMI
