ONSEMI BAS16DXV6T1G Dual Switching Diode
The BAS16DXV6 is a dual switching diode designed for automotive and industrial applications. It features low forward voltage, fast reverse recovery time, and high-reliability RoHS-compliant construction. With a maximum reverse voltage of 100 V and a forward surge current of 500 mA, it efficiently handles high-speed switching. The device is suitable for signal processing, flyback protection, and switching functions. Its compact SOT-563 package makes it ideal for space-constrained circuits, with excellent thermal characteristics ensuring reliable operation in various environments.
ONSEMI BAS16DXV6T1G Dual Switching Diode Specifications:
- Maximum Reverse Voltage: 100 V
- Recurrent Peak Forward Current: 200 mA
- Peak Forward Surge Current: 500 mA
- Total Device Dissipation: 357 mW at 25°C
- Derate above 25°C: 29 mW/°C
- Junction-to-Ambient Thermal Resistance: 350 °C/W
- Junction and Storage Temperature Range: -55°C to +150°C
- Forward Voltage: 715 mV at 1.0 mA, 855 mV at 10 mA, 1250 mV at 50 mA, unspecified at 150 mA
- Reverse Current: 1.0 μA at 100 V, 50 μA at 75 V and 150°C, 30 μA at 25 V and 150°C
- Capacitance: 2.0 pF at 0 V, 1.0 MHz
- Reverse Recovery Time: 6.0 ns
- Stored Charge: 45 pC at IF=10 mA to Vp=6.0 V
- Forward Recovery Voltage: 1.75 V at 10 mA, t=20 ns

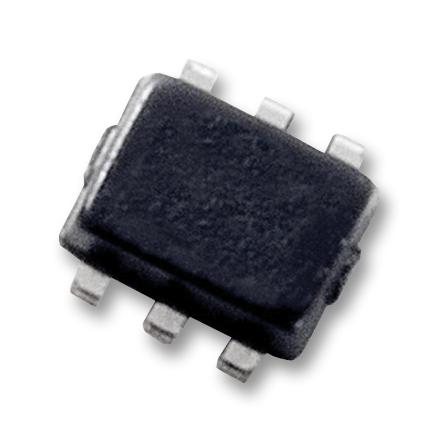

Buy the Buy ON Semiconductor BAS16DXV6 Part Number BAS16DXV6T1G Online
Purchase the ON Semiconductor BAS16DXV6T1G dual switching diode online today. Perfect for automotive, signal processing, and high-speed switching applications, this device offers low forward voltage, fast recovery time, and excellent thermal stability. Its compact SOT-563 package makes it ideal for space-constrained designs, with RoHS compliance ensuring environmentally friendly performance. Trust this high-quality component for reliable operation in demanding environments—order now and improve your circuit performance efficiently and confidently with quick delivery and excellent customer support.
Order your ON Semiconductor BAS16DXV6T1G today and ensure fast, reliable switching performance for your automotive and signal processing projects.
Frequently Asked Questions
Where can I buy ONSEMI BAS16DXV6T1G?
You can click on the BUY or RFQ button to purchase BAS16DXV6T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part BAS16DXV6T1G?
You can download the BAS16DXV6T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of BAS16DXV6T1G?
ONSEMI
