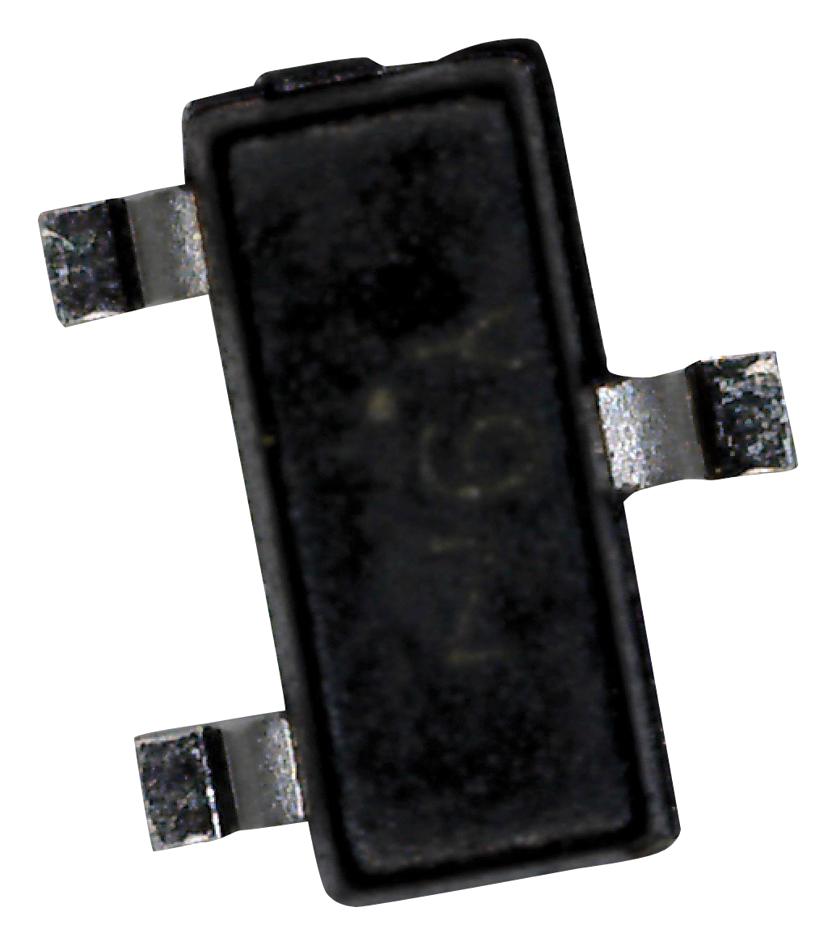

ONSEMI BZX84C24LT1G Zener Diode
These surface-mount Zener diodes in the SOT-23 package are designed for precise voltage regulation in compact spaces, suitable for cellular phones, portable devices, and high-density circuit boards. Offering a power rating of 250 mW, they feature a Zener breakdown voltage range from 2.4 V to 75 V, with automotive-grade SZ prefix options, AEC-Q101 qualification, and RoHS compliance. Their small size, high ESD ratings, and compatibility with automated assembly make them ideal for high-density applications requiring reliable, short-circuit protection and voltage stabilization.
ONSEMI BZX84C24LT1G Zener Diode Specifications:
- Package: SOT-23, TO-236, Case 318-08, Style 8
- Maximum Power Dissipation: 250 mW on FR-5 board at 25°C, derated 2.0 mW/°C
- Junction-to-Ambient Thermal Resistance: 500 °C/W (RθJA)
- Maximum Storage and Operating Temperature: -65°C to +150°C
- Zener Breakdown Voltage Range: 2.4 V to 75 V, measured at pulse test current
- Reverse Current (Izr): varies per voltage, typically low leakage
- Maximum Zener Impedance: varies with Zener voltage, suitable for regulation
- Polarity: Cathode indicated by polarity band, designed for reverse breakdown
- ESD Rating: Class 3 (> 16 kV), suitable for electrostatic discharge protection
- RoHS compliant and Pb-Free, designed for automated assembly and high-density applications.
Buy the ON Semiconductor Series Zener Voltage Regulators: BZX84C24LT1G
Purchase ON Semiconductor BZX84C24LT1G Zener diode online today—engineered for reliable voltage regulation in high-density electronic circuits. This surface-mount device offers a power rating of 250 mW, a wide breakdown voltage range from 2.4 V to 75 V, and is RoHS compliant. Designed for cellular phones, portable gadgets, and dense PCBs, it features a small package size, robust ESD ratings, and compatibility with automated assembly. Secure your supply of high-quality, automated board-friendly protection diodes now for optimal device safety and performance.
Get ON Semiconductor BZX84C24LT1G today—built for precision and long-lasting durability in compact voltage regulation solutions.
Frequently Asked Questions
Where can I buy ONSEMI BZX84C24LT1G?
You can click on the BUY or RFQ button to purchase BZX84C24LT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part BZX84C24LT1G?
You can download the BZX84C24LT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of BZX84C24LT1G?
ONSEMI
