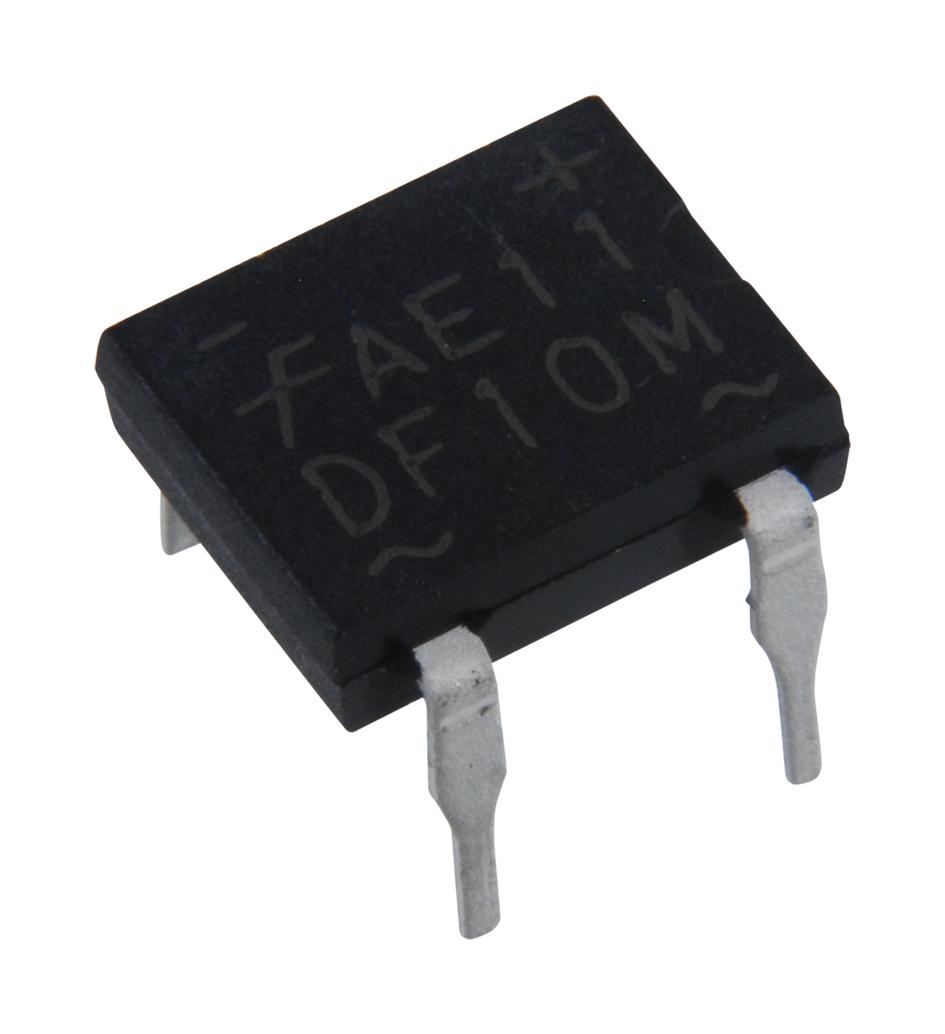

ONSEMI DF10M Bridge Rectifier
The DF10M is a 4-pin single-phase bridge rectifier diode with a glass-passivated junction, characterized by low leakage current. It has a surge overload rating of 50A and a maximum RMS bridge input voltage of 700V. The device operates within a temperature range of -55°C to 150°C and is suitable for mains rectification applications. Designed for high reliability, this bridge rectifier offers robust performance in industrial and power supply systems, ensuring efficient conversion and protection with UL certification. Ideal for applications requiring high surge capacity and durable operation under varying thermal conditions.
ONSEMI DF10M Bridge Rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 1000 V
- Maximum RMS Bridge Input Voltage: 700 V
- DC Reverse Voltage at Rated IR: 1000 V
- Average Rectified Forward Current: 15 A
- Non-Repetitive Peak Forward Surge Current: 50 A
- Storage Temperature Range: -55°C to +150°C
- Operating Junction Temperature: -55°C to +150°C
- Power Dissipation: 3.1 W
- Thermal Resistance, Junction-to-Ambient: 40°C/W
- Forward Voltage, per Element at 1.0A: 1.1 V
- Typical Capacitance, per Leg: 25 pF
Buy the Buy ON Semiconductor Bridge Rectifier Part Number DF10M Online
Purchase the ON Semiconductor DF10M bridge rectifier online today and enjoy fast delivery and excellent quality. This high-capacity component handles surge currents up to 50A and offers a maximum RMS voltage of 700V, ensuring your power supply systems operate smoothly and efficiently. Ideal for mains rectification and industrial applications, the DF10M features a glass-passivated junction with low leakage, robust thermal performance, and UL certification for safety and reliability. Secure your supply chain with genuine, authorized parts from our online store and optimize your project's performance and safety.
Buy ON Semiconductor DF10M now and experience unmatched reliability and performance in power rectification with high surge capacity and low leakage current.
Frequently Asked Questions
Where can I buy ONSEMI DF10M?
You can click on the BUY or RFQ button to purchase DF10M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part DF10M?
You can download the DF10M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of DF10M?
ONSEMI
