ONSEMI EMI8142MUTAG Common Mode Filter with ESD Protection
The EMI814x family are innovative Common Mode Filters with integrated ESD protection, suitable for high-speed differential signals like USB 3.0, MIPI D-PHY, and HDMI. Available in RoHS-compliant XDFN packages for one, two, and three differential pairs, these devices provide excellent attenuation, low channel resistance, and withstand ESD pulses up to +15 kV contact. Their small footprint and robust protection capabilities make them ideal for mobile devices, digital cameras, and storage systems, combining filtering and ESD protection in a single compact package.
ONSEMI EMI8142MUTAG Common Mode Filter with ESD Protection Specifications:
- Total Insertion Loss: < 2.5 dB at 2.5 GHz
- Large Differential Mode Cutoff Frequency: > 5 GHz
- Common Mode Stop Band Attenuation: > 10 dB at 500 MHz, 15 dB at 700 MHz
- ESD Protection: IEC 61000-4-2 Level 4, +15 kV contact
- Channel Resistance: 6.0 Ω
- Operating Temperature Range: -40 to +85 °C
- Storage Temperature Range: -65 to +150 °C
- Maximum Lead Temperature for Soldering: 260 °C for 10 seconds
- Reverse Working Voltage: 33 V
- Breakdown Voltage: 4.0 V (min) at 1 mA
- Differential Mode Insertion Loss at 2.5 GHz: 25 dB
- Differential Mode Cutoff Frequency: 5.0 GHz
- Transmission Line Pulse (TLP) withstand voltage: 8 kV (contact)
- Package types: XDFN6, XDFN10, XDFN16 with respective dimensions of 1.40x1.35mm, 2.2x1.35mm, and 3.5x1.35mm

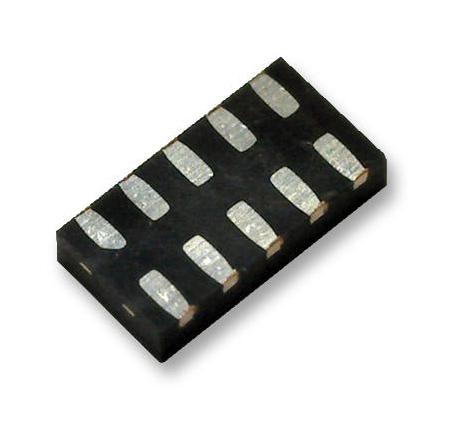

Buy the ON Semiconductor EMI8142 – Reliable Common Mode Filter with ESD Protection for Industrial Applications
