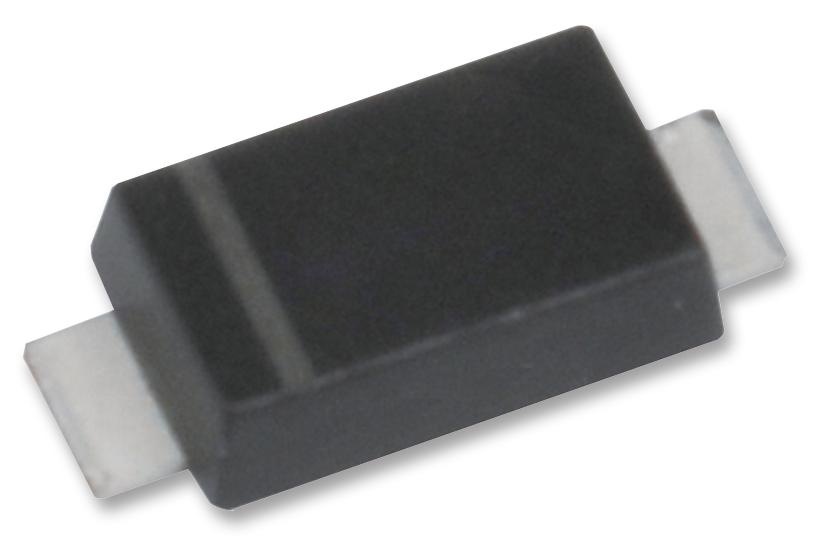

ONSEMI ES1JAF Ultrafast Rectifier
The ultra-fast surface mount rectifier is designed for high-speed switching applications in power conversion systems. With a fast switching speed of maximum 35 ns, it features a glass passivated junction, UL 94V-0 flammability rating, and RoHS compliance. The device is qualified under AEC-Q101 standards, suitable for industrial environments. Its compact design includes a maximum height of 1.0 mm, ensuring efficient space utilization. This rectifier operates reliably over a temperature range of -55°C to +150°C, making it ideal for demanding power management tasks in various electronic systems.
ONSEMI ES1JAF Ultrafast Rectifier Specifications:
- Recurrent Peak Reverse Voltage: 200 V for ES1DAF, 600 V for ES1JAF
- RMS Voltage: 140 V for ES1DAF, 420 V for ES1JAF
- DC Blocking Voltage: 200 V for ES1DAF, 600 V for ES1JAF
- Average Forward Current: 1 A
- Peak Forward Surge Current (8.3 ms): 30 A
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance Junction-to-Lead: 24 °C/W
- Thermal Resistance Junction-to-Ambient: 150 °C/W
- Forward Voltage (typical): 0.95 V at 1 A
- Reverse Recovery Time: 34 ns
- Junction Capacitance: 15 pF at Vr=4V, 1 MHz
- Surface Mount Do-214AD (SMAF) package
