ONSEMI ESD7951ST5G ESD Protection Diode
The ESD7951S is an ultra-low capacitance ESD protection diode designed for high-frequency applications like USB 2.0 high speed and antenna lines. It offers excellent clamping, low leakage, and rapid response times under ESD events up to 48 kV contact. Its compact SOD-923 package with small dimensions (0.039” x 0.024”) ensures minimal board space usage. This Pb-Free device features a 5 V stand-off voltage, meets IEC 61000-4-2 Level 4 standards, and is suitable for automotive and other electronics requiring reliable ESD protection with low capacitance of 0.5 pF.
ONSEMI ESD7951ST5G ESD Protection Diode Specifications:
- Capacitance: 0.5 pF
- Clamping Voltage: 5.4 V at Ipp=1.0 A
- Stand-off Voltage: 5 V
- Response Time: < 1.0 ns
- Maximum Peak Reverse Voltage: 5.4 V
- Maximum Reverse Leakage Current: 12.9 mA
- Maximum Contact Discharge IEC 61000-4-2: 48 kV
- Body Dimensions: 0.039 inches x 0.024 inches (1.00 mm x 0.60 mm)
- Body Height: 0.016 inches (0.4 mm)
- Maximum Reflow Temperature: 260°C
- Mechanical Case: Void-free, transfer-molded plastic, UL 94 V-0
- Lead Finish: Matte Sn (Tin)
- Maximum Power Dissipation: 150 mW @ 25°C
- Storage Temperature Range: -55°C to +150°C
- Junction Temperature: -55°C to +125°C
- Soldering Temperature: Max 260°C for 10 seconds

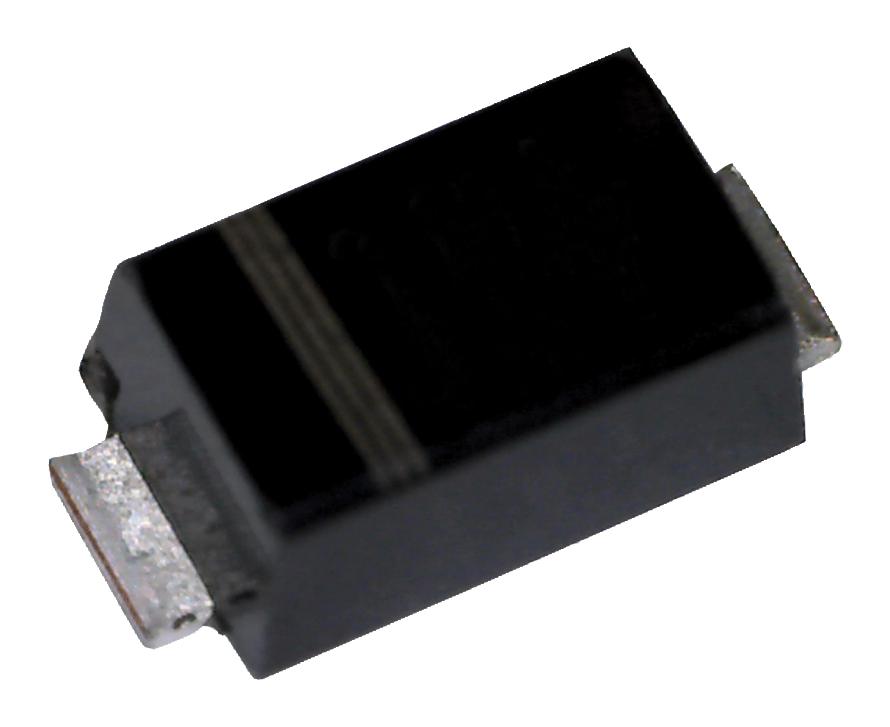

Buy the Buy ON Semiconductor ESD7951S Part Number ESD7951ST5G Online
Secure your high-speed and sensitive electronic designs with the ESD7951S protection diode from ON Semiconductor. This compact, Pb-Free device offers ultra-low capacitance of just 0.5 pF, ensuring excellent ESD suppression up to 48 kV contact discharge according to IEC 61000-4-2 Level 4 standards. Its fast response time under 1 ns minimizes voltage spikes, protecting delicate components efficiently. The small SOD-923 package facilitates easy integration into space-constrained circuits, making it ideal for USB 2.0 high speed, antenna lines, and automotive electronics requiring robust ESD safeguarding in a reliable, low-leakage design.
Buy ON Semiconductor ESD7951S now and experience unmatched reliability and performance in high-speed ESD protection with ultra-low capacitance and fast response time.
Frequently Asked Questions
Where can I buy ONSEMI ESD7951ST5G?
You can click on the BUY or RFQ button to purchase ESD7951ST5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part ESD7951ST5G?
You can download the ESD7951ST5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of ESD7951ST5G?
ONSEMI
