ONSEMI FFPF10F150STU High-Speed Diode
The FFPF10F150S is a high-speed recovery diode suitable for damper applications in horizontal deflection circuits. It features a maximum reverse voltage of 1500 V, a forward voltage of approximately 1.6 V at 25°C, and a recovery time of 170 ns. Designed for high reliability, it handles average forward currents up to 10 A and surge currents of 100 A. The diode adheres to standard thermal and electrical specifications, including a junction to case resistance of 3.0°C/W, making it ideal for high-voltage, high-speed switching in electronic power systems.
ONSEMI FFPF10F150STU High-Speed Diode Specifications:
- Peak Repetitive Reverse Voltage: 1500 V
- Working Peak Reverse Voltage: 1500 V
- Average Rectified Forward Current: 10 A at Tc = 125°C
- Peak Surge Current: 100 A
- Maximum Reverse Recovery Time: 170 ns
- Maximum Forward Voltage: 16 V at 10A and 25°C
- Maximum Reverse Current: 10 μA at 25°C, 80 μA at 125°C
- Junction to case thermal resistance: 3.0°C/W
- Operating Junction and Storage Temperature: -65°C to +150°C
- Package Type: TO-220F-2L

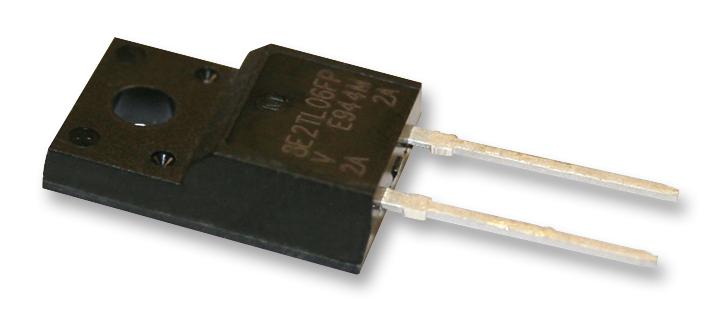

Buy the Buy ON Semiconductor Damper Diode Part Number FFPF10F150S Online
Order the ON Semiconductor FFPF10F150S high-speed diode online and experience exceptional performance in high-voltage switching and deflection circuits. Featuring a 1500V reverse voltage, 10A currents, and a fast 170ns recovery time, it is ideal for reliable, efficient, and high-speed electronic applications. Designed to withstand harsh conditions with a maximum junction temperature of 150°C, this diode provides long-lasting durability and high reliability, ensuring optimal operation in demanding industrial and consumer power systems. Purchase now for quick delivery and technical support.
Get ON Semiconductor FFPF10F150S today—built for high-voltage, high-speed switching in reliable electronic power applications.
Frequently Asked Questions
Where can I buy ONSEMI FFPF10F150STU?
You can click on the BUY or RFQ button to purchase FFPF10F150STU from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FFPF10F150STU?
You can download the FFPF10F150STU datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FFPF10F150STU?
ONSEMI
