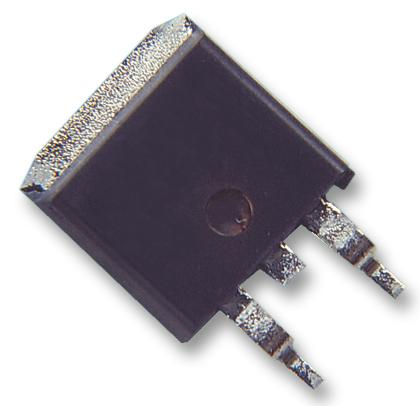

ONSEMI FJB102TM High-Voltage Power Transistor
The FJB102 is a high-voltage NPN Darlington transistor designed for industrial power switching applications. Featuring high dc current gain, low collector-emitter saturation voltage, and capable of handling collector currents up to 8A, pulse currents of 15A, with a collector-emitter voltage rating of 100V. It is housed in a TO-263 (D2PAK) package, making it suitable for surface-mount applications where high efficiency and reliable performance are critical. The device is ideal for controlling high-voltage loads in industrial automation, motor control, and power management systems.
ONSEMI FJB102TM High-Voltage Power Transistor Specifications:
- Collector-Base Voltage: 100 V
- Collector-Emitter Voltage: 100 V
- Emitter-Base Voltage: 5 V
- Collector Current (DC): 8 A
- Collector Current (Pulse): 15 A
- Base Current (DC): 1 A
- Collector Dissipation: 80 W at Tc = 25°C
- Junction Temperature: 150°C
- Storage Temperature Range: -65 to 150°C
- Maximum Power Dissipation: 80 W
- Package: TO-263 (D2PAK)
- Lead configuration: Surface Mount
- High DC gain: hre ≥ 1000 at Vce = 4 V, Ic = 3 A
- Low saturation voltage, suitable for efficiency-critical applications
Buy the ON Semiconductor FJB102 – Reliable Power Darlington Transistor for Industrial Applications
Purchase the ON Semiconductor FJB102 today and enhance your industrial power control systems with a high-voltage NPN Darlington transistor. Its robust design supports collector currents up to 8A and voltage ratings of 100V, ensuring stable operation under demanding conditions. The surface-mount TO-263 package offers easy integration into modern automation and motor control systems. With a high DC gain and low saturation voltage, this transistor guarantees efficient power management. Order now to secure fast delivery and reliable operation for your high-power applications.
Buy ON Semiconductor FJB102 now and experience unmatched reliability and performance in high-voltage power switching for industrial automation.
Frequently Asked Questions
Where can I buy ONSEMI FJB102TM?
You can click on the BUY or RFQ button to purchase FJB102TM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FJB102TM?
You can download the FJB102TM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FJB102TM?
ONSEMI
