ONSEMI FPF1321BUCX Dual Power Switch
The FPF1320 and FPF1321 are advanced dual-input, single-output power switches designed for portable devices. They feature low on-resistance, slew-rate-controlled turn-on to prevent inrush current, and support seamless transitions between power sources with break-before-make operation. These devices operate over 1.5V to 5.5V input range, include true reverse-current blocking, and have a quick discharge feature on the FPF1321 model. Compact wafer-level chip-scale packages ensure easy integration into mobile and NFC-enabled applications, offering robust safety and efficiency in power management.
ONSEMI FPF1321BUCX Dual Power Switch Specifications:
- Input Operating Range: 1.5 V to 5.5 V
- On-Resistance: 50 mΩ at Vin=3.3 V per channel
- Maximum Isw: 1.5 A per channel
- Slew Rate Control: 130 μs at < 1 μF load
- Reverse-Current Blocking: Yes
- Discharge Feature (FPF1321): Yes, 65 Ω load resistor
- ESD Protection: >6 kV Human Body Model, >1.5 kV Charged Device Model

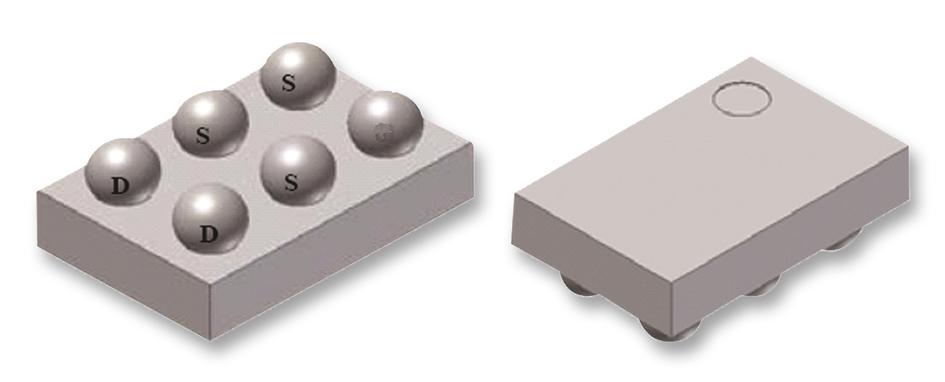

- Package: 1.0 mm x 1.5 mm Wafer-Level Chip-Scale Package, 6-bumps, 0.5 mm pitch
- Operating Temperature Range: -40°C to 85°C
- Voltage Rating: Up to 5.5 V on inputs, output voltage supported up to 5.5 V
- Shutdown Current: 5 pA at Vout=GND
- Barrier: Break-before-make switching
- Control Logic: CMOS-compatible, active HIGH EN, active HIGH or LOW SEL
- Application: Portable devices, NFC, smart phones, tablet PCs
Buy the ON Semiconductor Series DISO Power Switch: FPF1321BUCX
Purchase the ON Semiconductor FPF1321BUCX dual power switch today to ensure reliable power management in your portable device applications. Designed for low resistance and seamless transition between power sources, it features true reverse-current blocking for added safety. Its compact wafer-level chip-scale package simplifies integration, ideal for NFC-enabled, mobile, and wearable technology. With adjustable slew rate control and quick discharge on model FPF1321, it reduces inrush current, increases efficiency, and improves overall device performance. Buy online now for durable, high-performance power switching in your project.
Get ON Semiconductor FPF1321BUCX today—built for seamless power source transitions, low resistance, and robust reverse-current protection in portable devices.
