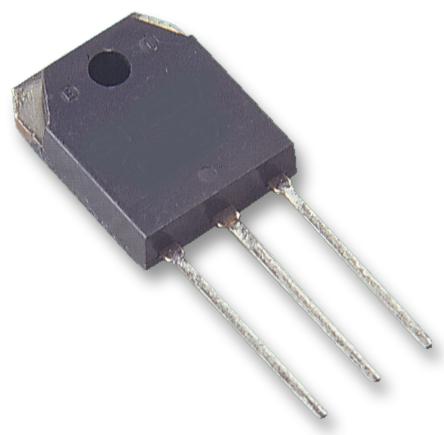

ONSEMI FQA24N60 Power MOSFET
The FQA24N60 is a 600V N-channel enhancement mode Power MOSFET fabricated using planar stripe and DMOS technology. It is specifically designed to minimize on-state resistance, deliver excellent switching performance, and withstand high energy pulses during avalanche and switching operations. Suitable for high-efficiency switch mode power supplies, active power factor correction, and electronic lamp ballasts based on half-bridge topology, this device offers versatility for various applications. It features low gate charge and undergoes 100% avalanche testing to ensure reliability. Due to high market demand, lead times may be extended, and delivery dates are subject to fluctuation. Please note that this product is exempt from discounts.
ONSEMI FQA24N60 Power MOSFET Specifications:
- Drain-Source Voltage: 600 V
- Drain Current - Continuous: 23.5 A at 25°C
- Drain Current - Pulsed: 94 A
- Gate-Source Voltage: +30 V
- Single Pulsed Avalanche Energy: 1300 mJ
- Power Dissipation: 310 W at 25°C
- Thermal Resistance, Junction-to-Case: 0.4 °C/W
- Operating Temperature Range: -55 to +150 °C
- Package: TO-3PN
- Gate Threshold Voltage: 30 V (min), 50 V (typ)
- Gate Charge: Typ. 110 nC
- Body Diode Forward Voltage: 14 V at 23.5 A
- Maximum Lead Soldering Temperature: 300°C for 5 seconds
Buy the Fairchild FQA24N60 – Reliable Power MOSFET for Industrial Applications
Get the Fairchild FQA24N60 power MOSFET online now for reliable high-voltage switching in industrial power supply, lighting, and PFC systems. This 600V N-channel transistor offers low gate charge, excellent switching performance, and proven durability through 100% avalanche testing. Its robust design ensures high energy pulse handling and low on-state resistance, making it ideal for demanding applications like electronic ballasts and switch mode power supplies. Purchase online today for quick delivery and assured quality, ensuring your projects meet the highest standards of efficiency and reliability.
Order your Fairchild FQA24N60 series power MOSFET today and enhance your switching efficiency with high avalanche energy strength and low gate charge.
Frequently Asked Questions
Where can I buy ONSEMI FQA24N60?
You can click on the BUY or RFQ button to purchase FQA24N60 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FQA24N60?
You can download the FQA24N60 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FQA24N60?
ONSEMI
