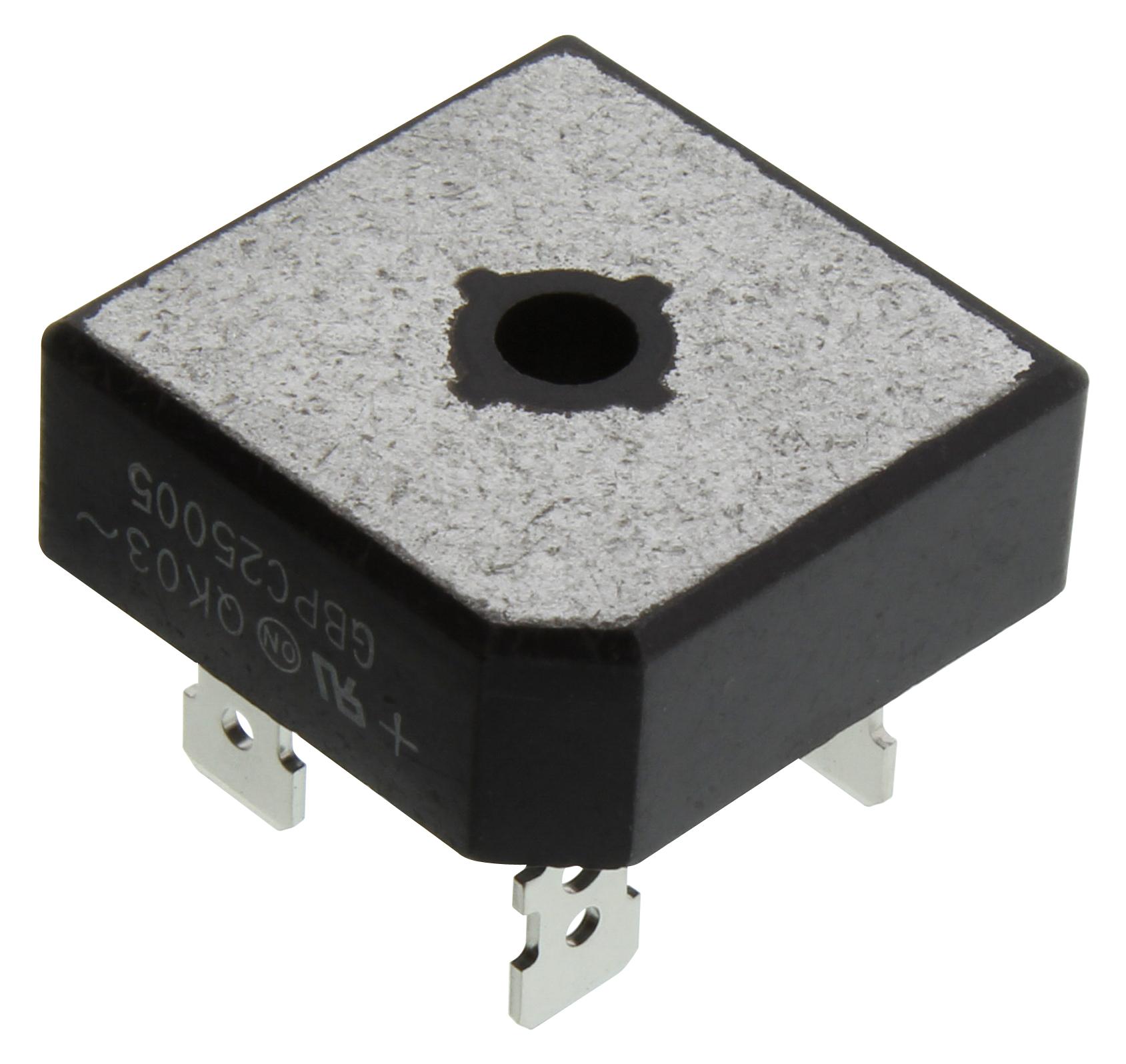

ONSEMI GBPC25005 Bridge Rectifier
The GBPC25005 is a 4-pin single-phase bridge rectifier diode equipped with an integrated molded heat sink that provides very low thermal resistance for efficient heat dissipation. It features a glass-passivated junction, nickel-finished terminals, and is capable of handling surge overloads between 300 to 400A. The device offers isolation voltages from case to lead exceeding 2500V, and supports a maximum RMS input voltage of 35V. Its operating temperature range extends from -55°C to 150°C. This component is primarily used for mains rectification applications. Please note that due to high market demand, lead times are extended, and delivery dates may fluctuate. The product is exempt from discounts.
ONSEMI GBPC25005 Bridge Rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 50V
- Maximum RMS Bridge Input Voltage: 35V
- DC Reverse Voltage: 50V
- Surge Overload Ratings: 300A to 400A
- Isolation Voltage from Case to Lead: >2500V
- Operating Temperature Range: -55°C to 150°C
- Junction Temperature: -55°C to 150°C
- Power Dissipation: 83.3W
- Thermal Resistance, Junction to Case: 15°C/W
- Forward Voltage Drop at 6.0A: 1.4V
- Reverse Current at 25°C: 5.0A
- Reverse Current at 125°C: 500A
- Total Capacitance per Leg at 4.0V, 1MHz: 180pF
- Molded Heat Sink: Yes
- Lead Finish: Nickel
- Package: 4-pin single-phase bridge rectifier
- Mounting Torque: Up to 20 in-lbs
- UL Certification: Yes, UL #E258596
Buy the ON Semiconductor GBPC25005 – Reliable Bridge Rectifier for Industrial Applications
Purchase the ON Semiconductor GBPC25005 online now for your power rectification needs. This high-capacity, glass-passivated bridge rectifier features an integrated molded heat sink, nickel terminals, and surge overload capabilities up to 400A. Designed for efficient heat dissipation and reliable performance, it supports a maximum RMS input voltage of 35V and operates between -55°C and 150°C. Perfect for industrial power systems, this device ensures durability, safety, and compliance with UL standards. Order today for fast delivery and bulk pricing options.
Get ON Semiconductor GBPC25005 today—built for precise power rectification and long-lasting durability in industrial settings.
Frequently Asked Questions
Where can I buy ONSEMI GBPC25005?
You can click on the BUY or RFQ button to purchase GBPC25005 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part GBPC25005?
You can download the GBPC25005 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of GBPC25005?
ONSEMI
